Description

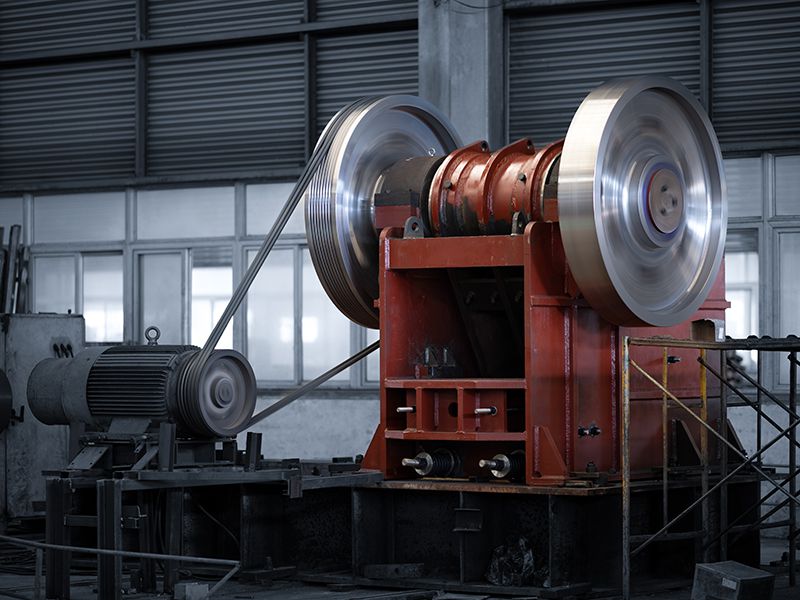

Jaw Crusher – Heavy-Duty Crushing for Hard and Abrasive Materials
The Jaw Crusher is a robust and reliable crushing solution designed for breaking down a wide range of minerals and rocks with a compressive strength of up to 320MPa. Ideal for materials such as limestone, sandstone, shale, gypsum, coal, and clay, it delivers consistent performance across demanding industrial applications.
Widely used in mining, smelting, construction materials, highways, railways, hydraulic projects, and chemical engineering, the jaw crusher is a versatile essential in both primary and secondary crushing stages. With its simple structure, easy maintenance, and high crushing ratio, it offers maximum efficiency and productivity for both stationary and mobile installations.
Key Features:
Suitable for high-strength materials (≤320MPa)
Strong performance across a wide range of applications
High crushing ratio and uniform output size
Durable construction for long-term use
Easy to operate and maintain
Applicable in mining, infrastructure, chemical, and industrial sectors
Choose our Jaw Crusher for a reliable and cost-effective solution that delivers powerful, precise crushing where you need it most.
Technical Details
| Description | |||
|---|---|---|---|
| Model | PE～500×750 | PE～600×900 | PE～800×1060 |
| Feeding Inlet size(mm) | 500x750 | 600×900 | 800×1060 |
| Max. Feeding size(mm) | 425 | 500 | 640 |
| Adjustment range of discharge opening(mm) | 50～100 | 65～160 | 100～200 |
| Processing capacity(m3/h) | 28.5～62.5 | 30～75 | 85～143 |
| Motor power(kW) | 55 | 55 | 110 |
| Weight (excluding motor) t | 10.3 | 15.5 | 30 |
