Description

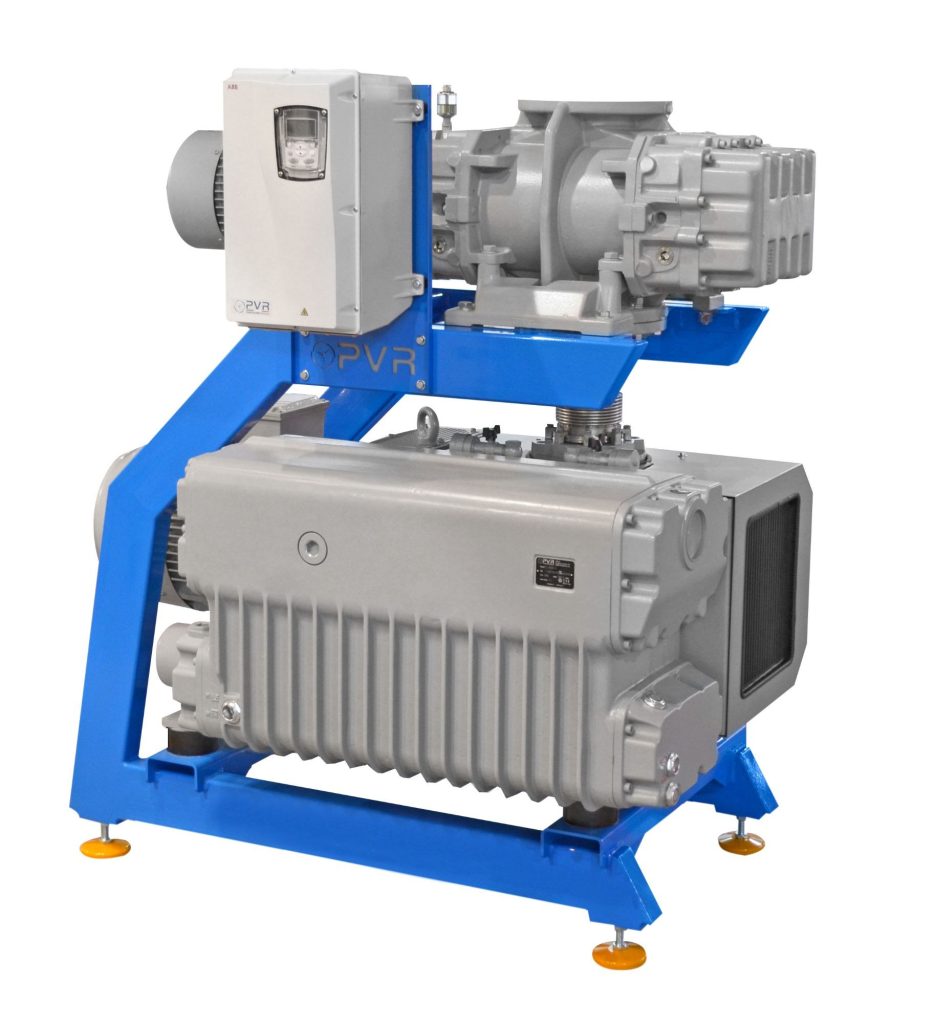

Kompact Vacuum Systems are engineered for customers requiring a powerful combination of vacuum vane pumps and Roots pumps. These compact, integrated systems deliver enhanced vacuum performance, ideal for applications demanding high pumping speed and deep vacuum levels. Built for reliability and efficiency, the Kompact GVK series optimizes energy use while ensuring consistent performance in demanding industrial environments. Whether used in packaging, coating, or material processing, these systems offer robust operation with minimal maintenance.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-11.3-S300H | SMC-HTE-11.4-S300H | SMC-HTE-12.5-S300H |
| Pumping speed m³/h (50Hz) | 500 | 750 | 1000 |
| Pumping speed m³/h (60Hz) | 600 | 600 | 1200 |
| Ultimate pressure (abs.) mbar | ≤ 7 x 10-3 | ≤ 7 x 10-3 | ≤ 7 x 10-3 |
| Sound pressure level dB(A) (50Hz) | 74 | 74 | 74 |
| Sound pressure level dB(A) (60Hz) | 76 | 76 | 76 |
| Dimensions LxBxH mm (50Hz) | 1000x684x1158 | 1000x684x1158 | 1118x684x1198 |
| Weight Kg (50Hz) | 410 | 440 | 490 |
| Weight Kg (60Hz) | 415 | 445 | 495 |
| Connections | |||
| Inlet | DN100 | DN100 | DN150 |
| Outlet | 2” Gas | 2” Gas | 2” Gas |
