Description

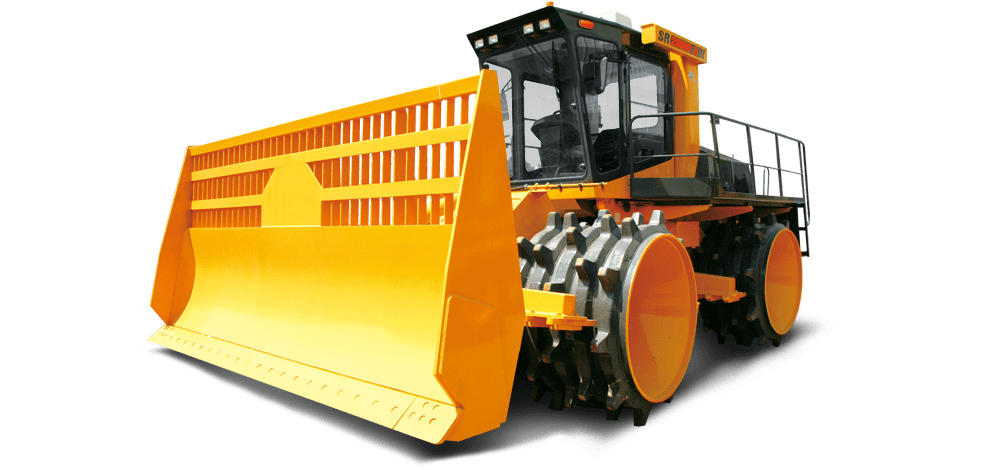

Strong Mac Landfill Compactors—SR23MR, SR26MR-3, and SR28MR-3—are purpose-built for demanding landfill environments, offering superior performance in garbage leveling, crushing, and compacting tasks. Each model is powered by a high-efficiency Weichai WP10 engine, carefully paired with a hydro-mechanical power drive system to ensure maximum power, fuel efficiency, and durability under tough conditions. The machines feature large-capacity blades and specialized compacting wheels with wear- and corrosion-resistant teeth, delivering effective compaction and long service life. A standard spray system enables disinfection during operation, enhancing sanitary management. Operator comfort is prioritized with a fully sealed cab, single-lever travel control, steering wheel operation, and electronic blade lift, providing effortless and safe control. These compactors are ideal for urban waste management, landfill sites, and garbage treatment facilities.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SR28MR-3 | SMC-CE-SR26MR-3 | SMC-CE-SR23MR |
| External dimensions(mm) | 7940*3660*3960 | 7940*3660*3925 | 7360*3200*3640 |
| Engine brand | Weichai | Weichai | Weichai |
| Power/speed(kW/rpm) | 178/2200 | 178/2200 | 178/2200 |
| Operating weight(kg) | 28000 | 26000 | 23000 |
| Front and rear load distribution(kg) | 14000/14000 | 13000/13000 | 11500/11500 |
| Compaction width(mm) | 3660 | 3660 | 3200 |
| Minimum turning radius(mm) | 7250 | 7250 | 6900 |
| Blade capacity(m³) | 12 | 12 | 9 |
| Maximum blade lifting height/soil penetration depth(mm) | 1146/150 | 1150/165 | 1050/160 |
| Gradeability | 100 | 100 | 100 |
| Speed(km/h) | For4.4/6.8/10;Rev4.4/6.8 | For4.4/6.8/10;Rev4.4/6.8 | For4.37/6.82/10;Rev4.37/6.82 |
| Emissions (Indicated as per China standards) | Eu stage IIIA | Eu stage IIIA | Eu stage IIIA |
