Description

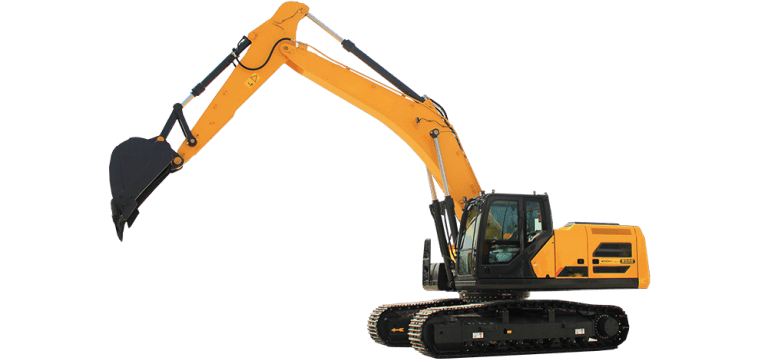

These large-capacity excavators are designed to deliver maximum productivity in mining, infrastructure development, and heavy earthwork operations. Featuring high-power engines, intelligent hydraulic systems, and precision electronic controls, they offer outstanding performance, fuel efficiency, and adaptability to varied terrain and working conditions.
With ergonomic operator cabins, intuitive touchscreen displays, and easy-access maintenance layouts, these machines combine cutting-edge technology with operator comfort and cost-effective serviceability.
Technical Details
Description | |||
---|---|---|---|
MODEL | SMC-CE-SE330LC | SMC-CE-SE400LCW | SMC-CE-SE600HW |
Operating weight(kg) | 30300 | 38800 | 55000 |
Engine power(kW/rpm) | 228/2000 | 247/2000 | 562/1900 |
Bucket capacity(m³) | 1.6 | 1.95 | 3.2 |
External dimensions(mm) | 10850*3200*3405 | 11265*3200*3800 | 12060*3450*4030 |
Bucket rod digging force(kN) | 140(155) | 210 | 285 |
Bucket digging force(kN) | 210 | 254 | 310 |
Rotating speed(r/min) | 0-10.7 | 0-10.5 | 0-8.7 |
Travel speed(km/h) | 3.3/5.5 | 3.0/.05 | 3.3/5.6 |
Maximum digging height(mm) | 9905 | 10160 | 10335 |
Maximum digging distance(mm) | 10883 | 10855 | 11475 |
Maximum digging depth(mm) | 7186 | 7040 | 7120 |
Emissions (Indicated as per international standards) | Tier 3 | Eu stage IIIA | Eu stage IIIA |
