Description

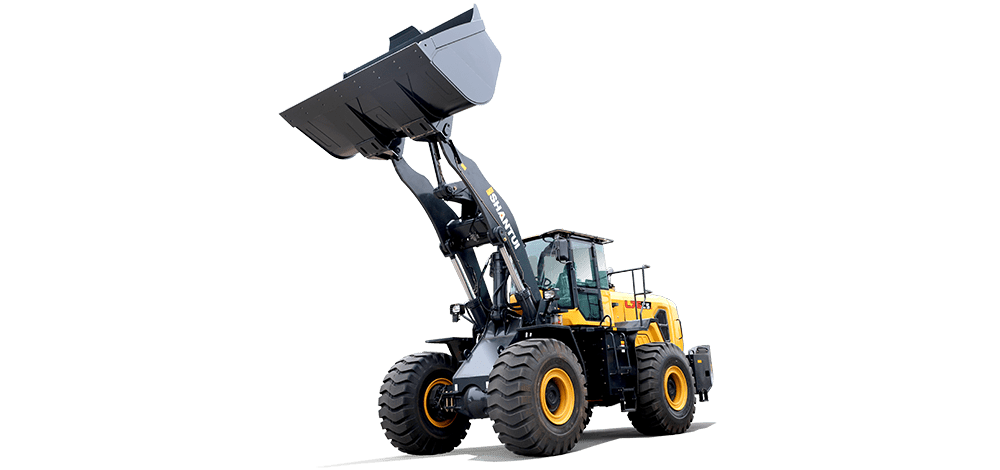

Large wheel loaders are engineered to deliver high productivity in demanding environments such as mining, quarrying, and material handling. With strong powertrains, spacious cabs, and excellent adaptability, these loaders are built for sustained, reliable performance in the most challenging conditions.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-L68K-B5 | SMC-CE-LH68K-C6 | SMC-CE-L76-C5 |
| Total power(kw) | 178-199 | 178 | 209 |
| Operating weight(kg) | 22500 | 23000 | 24800 |
| Bucket capacity(m³) | 3.5-5 | 4.5 | 5 |
| External dimensions(mm) | 9320×3080×3570 | 9558*3080*3660 | 9445X3236X3670 |
| Rated loading capacity(t) | 6.5 | 14.6 | 7 |
| Maximum dumping height(mm) | 3480 | 3413 | 3540 |
| Dumping distance(mm) | 1300 | 1368 | 1220 |
| Subtotal(s) | 9.9 | 10.6 | 10 |
| Wheelbase(mm) | 3500 | 3550 | 3550 |
| Maximum speed(km/h) | 37 | 36 | 39.7 |
| Emissions (Indicated as per international standards) | Eu stageⅡ | Eu stage Ⅲ | Eu stage IIIA |
