Description

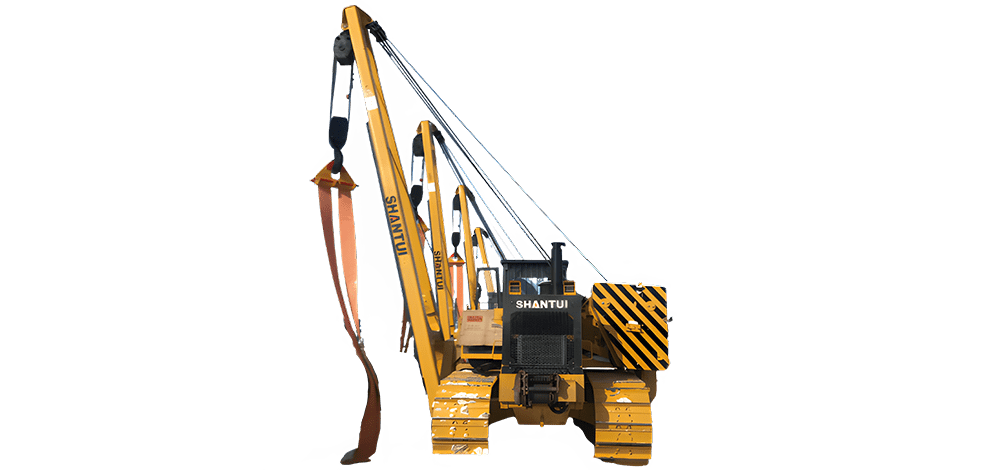

This pipelayer is a specialized piece of construction equipment built on a rugged crawler bulldozer chassis, specifically engineered for the installation of oil and gas transmission pipelines. Developed to operate efficiently in off-road and remote environments, this machine delivers high lifting capacity, robust structural stability, and industry-standard safety — making it ideal for long-distance pipeline construction.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-SP90Y | ||
| Overall weight(kg) | 60000 | ||
| Rated power/rated speed(kW/rpm) | 257/2000 | ||
| Maximum lifting weight(kg) | 90000 | ||
| External dimensions(mm) | 5650x3350x3600 | ||
| Engine model | Cummins QSNT-C345/NTA855-C360 | ||
| Track center distance(mm) | 2490 | ||
| Track shoe width(mm) | 860 | ||
| Ground contact length(mm) | 3620 | ||
| Fuel tank capacity(L) | 600 | ||
| Working device | Suspension rod | ||
| Emissions | EU stageⅢ/EU stageⅠ | ||
