Description

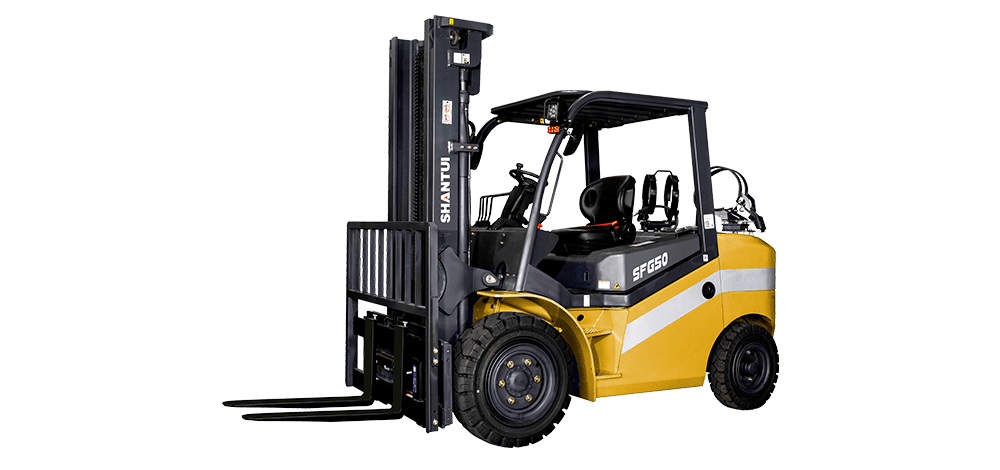

The LNG forklift is designed to deliver efficient and eco-friendly performance in demanding logistics and material handling operations. Built with self-manufactured core components—including the transmission and drive axle—this forklift is meticulously engineered to ensure optimal compatibility with a dedicated LNG engine, offering reduced fuel consumption, strong traction, and enhanced operational safety.
Maintenance is made simple with a removable suspension frame that provides quick access to critical components. An integrated intelligent diagnostic system enables fast issue detection, minimizing downtime. For operator comfort and ease of use, the forklift includes a wide-view mast and an adjustable safety seat to enhance visibility and ergonomics during operation.
To meet the diverse requirements of logistics and warehouse environments, a range of optional door frames and fork configurations is available, providing flexibility and high load capacity for various operational scenarios.
Key Advantages:
-
LNG-powered system for lower fuel cost and reduced emissions.
-
Intelligent diagnostics and easy-access maintenance design.
-
Customizable mast and fork options for varied material handling needs.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-SFG50 | SMC-CE-SFG45 | SMC-CE-SFG40 |
| Load Weight(kg) | 5000 | 4500 | 4000 |
| Maximum lifting height(mm) | 4275 | 4275 | 4275 |
| Wheelbase(mm) | 2000 | 2000 | 2000 |
| External dimensions | 4180×1485×2390 | 4180×1485×2390 | 4180×1485×2390 |
| Load center distance(mm) | 500 | 500 | 500 |
| Front overhang(mm) | 567 | 567 | 562 |
| Forward/Backward Tilting Angle of Gantry(°) | 6°/12° | 6°/12° | 6°/12° |
| Emissions | EPA TIER 4 | EPA TIER 4 | EPA TIER 4 |
