Description

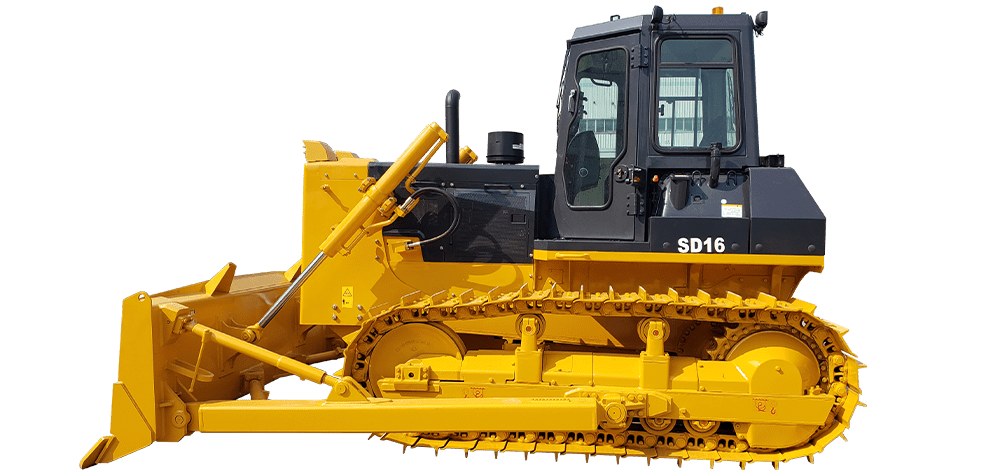

STRONG MAC Medium Bulldozer lineup, including the SD16, SD22, and SD17-B3 XL, is expertly built for powerful earthmoving across a variety of terrains. Equipped with high-performance Weichai and Cummins engines, these machines deliver strong traction, increased efficiency, and reliable output for construction, mining, and land development projects. With features like self-developed drive systems, durable chassis, and precision electro-hydraulic controls, operators experience smooth performance and improved work productivity. Spacious ergonomic cabs offer excellent visibility and comfort, while easy-access maintenance layouts reduce downtime. From clay and frozen ground to sandy terrain, Strong Mac medium bulldozers adapt effortlessly, making them a smart, dependable choice for diverse heavy-duty tasks.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SD16 | SMC-CE-SD22 | SMC-CE-SD17-B3 XL |
| Overall weight(kg) | 16400 | 23450 | 16800 |
| Engine brand | WEICHAI WD10G178E25 | Cummins NT855-C280S10/Weichai WP12G240E306 | WEICHAI WD10G190E214 |
| Rated power/rated speed(kW/rpm) | 131/1850 | 175/1800 | 140/1900 |
| Machine external dimensions(mm) | 5140*3455*3032 | 6060*4200*3402 | 5450*3452*3200 |
| Track center distance(mm) | 1880 | 2000 | 1880 |
| Track shoe width(mm) | 510/560/610 | 560/610/660 | 510/560/610 |
| Ground contact length(mm) | 2430 | 2430 | 2635 |
| Fuel tank capacity(L) | 315 | 450 | 338 |
| Blade type | Straight tilting/U-shaped Blade | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | Straight-tilt |
| Blade capacity(m³) | 3.2/4.8 | 4.6 | 3.2 |
| Emissions (Indicated as per international standards) | Eu stageⅡ | Eu stageⅡ | Eu stageⅡ |
