Description

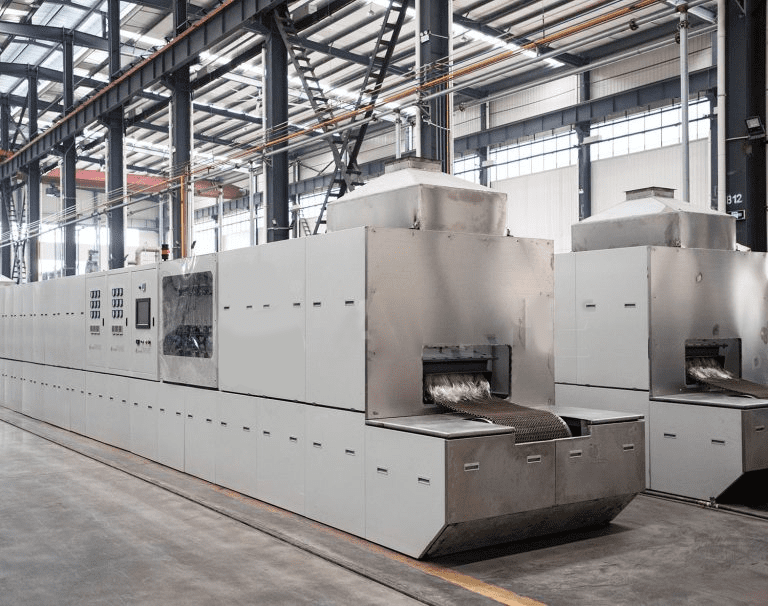

The mesh belt sintering furnace is a continuous high-temperature heat treatment system specifically designed for the sintering of powder metallurgy components. It is ideally suited for ferrous and copper-based parts, including oil-impregnated bearings, gears, clutch plates, bushings, sleeves, and similar precision-engineered components. Operating in a controlled atmosphere, this furnace ensures uniform sintering with excellent mechanical strength and dimensional stability.
Equipped with a durable mesh belt conveyor, the system allows for seamless material flow and efficient batch processing, making it ideal for high-volume production environments. The consistent temperature profile across the heating zones enables reliable metallurgical bonding of powder particles, resulting in dense, structurally sound parts with enhanced wear resistance and performance.
Its automated operation, adjustable belt speed, and atmosphere control features provide flexibility to accommodate various alloy compositions and part geometries. The mesh belt sintering furnace is widely used in automotive, industrial machinery, and electrical equipment manufacturing—offering a cost-effective and scalable solution for producing high-quality powder metal components with repeatable precision.
Technical Details
| Description | |||
|---|---|---|---|
| SpecModel | SMC-HTE-300/100-7 | SMC-HTE-460/100-7 | SMC-HTE-610/125-7 |
| Belt (mm) | 300 | 460 | 610 |
| Muffle (mm) | 90 | 100 | 125 |
| Heating zone | 7 | 7 | 7 |
| Heating zone length (mm) | 4000+5200 | 4500+5600 | 4600+6000 |
| Max.temperature (°C) | 1150 | 1150 | 1150 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Heating Power (kW) | 120 | 250 | 320 |
| Process gas of mesh belt sintering furnace | N2/3H2+N2/H2/CH4 | N2/3H2+N2/H2/CH4 | N2/3H2+N2/H2/CH4 |
| Gas consumption (m³/h) | 15 | 20 | 30 |
| Total size L×W×H (mm) | 21000 × 1500 × 1800 | 23500 × 1700 × 1900 | 23500 × 1900 × 2000 |
