Description

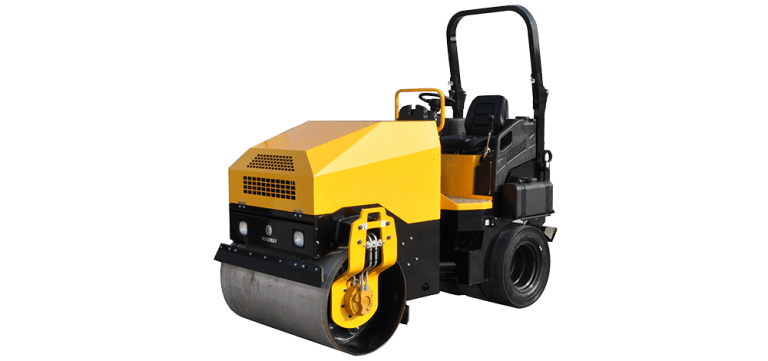

Strong Mac Mini Road Rollers—SRK017, SRK03, and SRK04—are compact yet powerful machines built for efficient compaction and repair of base and asphalt layers on urban roads, rural roads, intercity routes, water conservancy projects, and stadiums. Powered by reliable Yanmar engines, these rollers offer dual-drive traveling and stepless speed adjustment, ensuring smooth and precise operation. Their wide-base smooth tread tires deliver excellent compaction results across various surfaces. User-friendly controls include integrated electronic sprinkler and vibration buttons, while large water tanks allow for extended operations. With a design that prioritizes easy maintenance through rational layout and accessible engine components, these mini rollers are ideal for tight job sites and diverse working conditions.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SRK03 | SMC-CE-SRK04 | SMC-CE-SRK17 |
| External dimensions(mm) | 2495*1310*2440 | 2850*1520*2200 | 2230*1100*2450 |
| Engine brand | Yanmar | Yanmar | Yanmar |
| Power/speed(kW/rpm) | 26.9/3000 | 35/3000 | 17.8/3000 |
| Operating weight(kg) | 3000 | 4000 | 1700 |
| Front and Rear Static Linear Loads(N/cm) | 125 | 150 | 70 |
| Vibration frequency low/high(Hz) | 60 | 60 | 65 |
| Minimum turning radius(mm) | 2600 | 3000 | 2000 |
| Excitation force(kN) | 30 | 40 | 25 |
| Amplitude(mm) | 0.5 | 0.5 | 0.5 |
| Gradeability | 0.4 | 0.4 | 0.3 |
| Speed(km/h) | 0-12 | 0-12 | 0-8 |
| Emissions (Indicated as per China standards) | Eu stage IIIA | Eu stage IIIA | EPA Tier4 Final(EU Stage) |
