Description

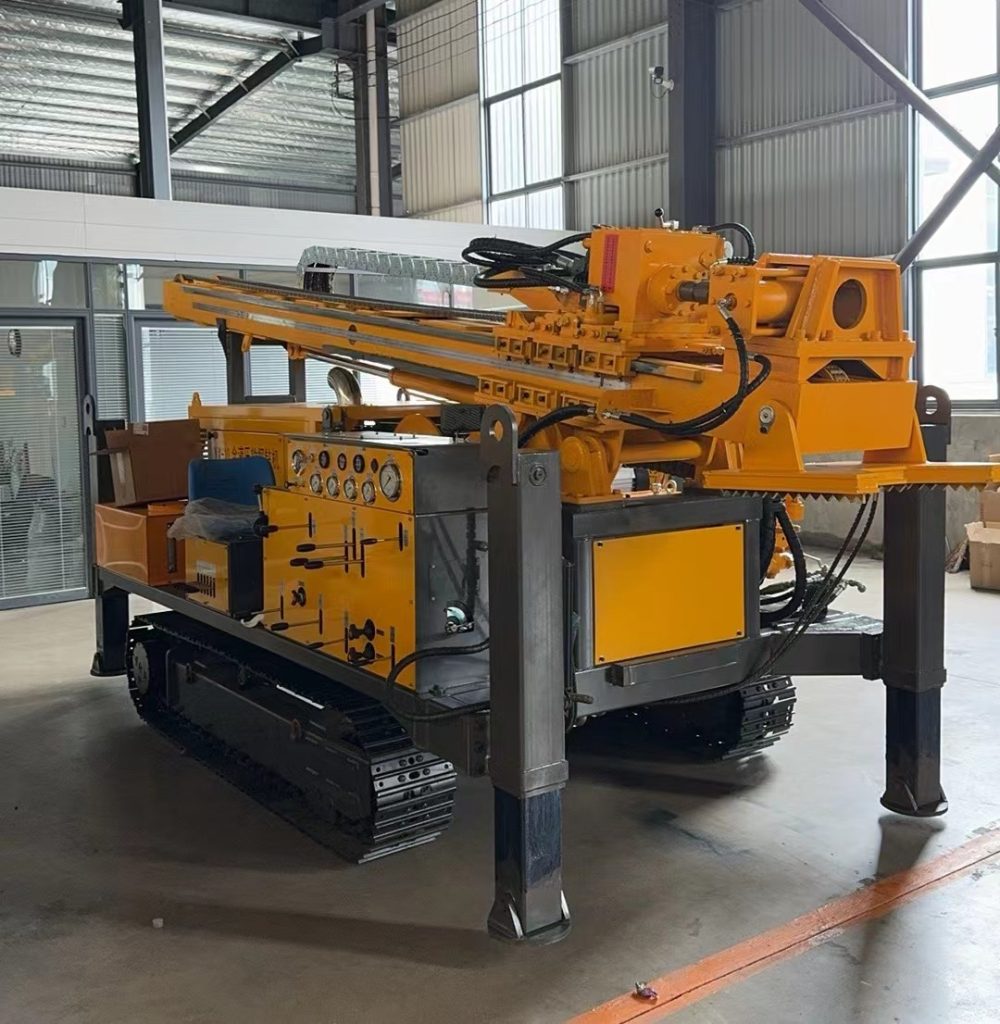

Explore our fully hydraulic core drilling rig, engineered for efficient coring and drilling in solid ore deposits. This robust equipment features hydrostatic transmission, reducing mechanical complexity. Experience its lightweight design, high efficiency, and simple operation. This rig is well-suited for coring applications requiring SMC-DTH-“NQ” and SMC-DTH-“NTW” size tooling.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-YX3 | ||
| Drilling capacity | |||
| BTW (m) | 400 | ||
| NTW (m) | 300 | ||
| HTW (m) | 100 | ||
| PQ | / (m) | ||
| Hydraulic system / Rated pressure | 26+26 MPA | ||
| Cooling method | Water cooling | ||
| Engine parameters | Kubota four-cylinder | ||
| Rated power Kw | 49.2*1 Kw | ||
| Rated speed rpm | 2700 | ||
| Power head parameters / Maximum speed | 1100 rpm | ||
| Feed stroke m | 1800 | ||
| Through hole diameter mm | 95 | ||
| Lifting force kN | 100 | ||
| Thrust force kN | 75 | ||
| Rope core winch parameters / Rope capacity | 400 m | ||
| Lifting force | 15 KN | ||
| Lifting speed | 110 m/min | ||
| Wire rope diameter | 6 mm | ||
| Mast parameters / Total height | 5.8 m | ||
| Drilling angle ° | 0-90 | ||
| Sliding stroke mm | / | ||
| Gripper parameters / Through hole | 130 mm | ||
| Track parameters / Maximum climbing angle ° | 30 (optional) |
