Description

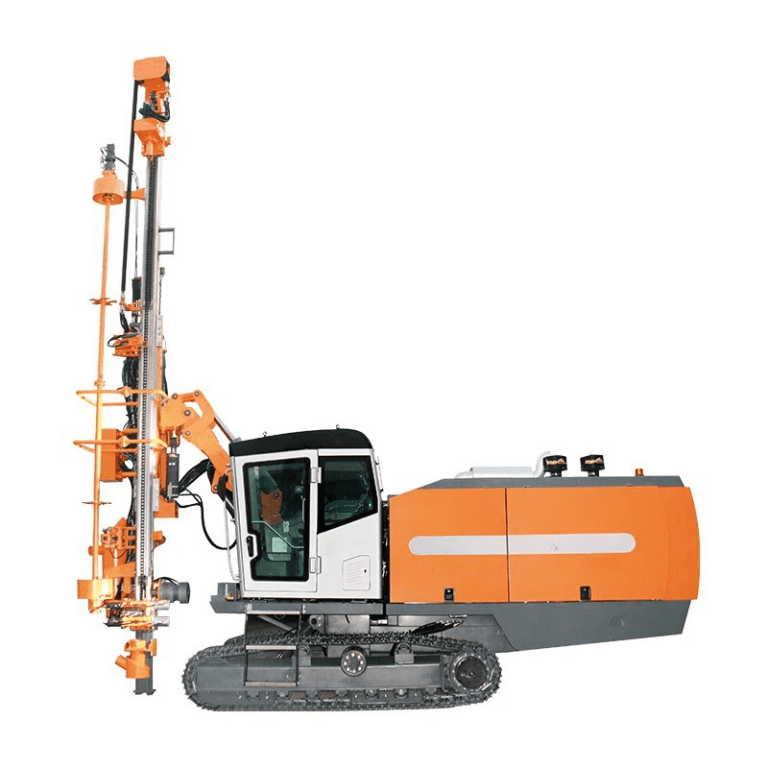

The SMC-TE-454 is a high-performance down-the-hole (DTH) surface drill rig engineered for demanding open-pit mining applications. Equipped with a powerful engine and a high-displacement air compressor, it delivers fast, efficient drilling across a wide range of rock types—from soft formations to hard, abrasive rock.
Built for durability and consistent performance in tough environments, the SMC-TE-454 features a rugged chassis and reinforced drilling components. Advanced safety systems—such as a hydraulic safety valve and drill pipe protection mechanism—enhance operator security and help prevent operational hazards on site.
Operator comfort is a key design element. The cab is spacious, climate-controlled, and ergonomically designed, with excellent visibility and low cabin noise to reduce fatigue during extended shifts.
In addition to its productivity and safety advantages, the SMC-TE-454 offers outstanding cost-effectiveness. It boasts low maintenance requirements and is easy to service, reducing downtime and overall lifecycle costs.
Whether you’re developing a large-scale mining site or running continuous production in an open quarry, the SMC-TE-454 provides a reliable, efficient, and operator-friendly solution that delivers long-term value.
Technical Details
| Description | |||
|---|---|---|---|
| Engine | (Cummins)QSL8.9-C360-30264 kW @ 2,000 rpm | ||
| Hole Depth | 25m | ||
| Drill Pipe Storage | 4+1 | ||
| Hole Range | Φ115- 152mm | ||
| Drill Pipe Diameter | Φ89×5,000 mm | ||
| DTH Hammer | 4＂/5＂ | ||
| Rotation Torque(Max.) | 4,000 N.m | ||
| Pull Up Force ( Max.) | 31 kN | ||
| Working Pressure | 21 bar | ||
| F.A.D | 19 m3/min | ||
| Tramming Speed | High Speed:3 km/h, Low Speed:2 km/h | ||
| Gradeability | 25° | ||
| Track Frame Oscilation | 士10° | ||
| Total Weight | 15,000 kg | ||
| Transportation Dimensions(L×W×H) | 11,200×2,360×3,100 mm | ||
| Auto pipe handling system | Standard |
