Description

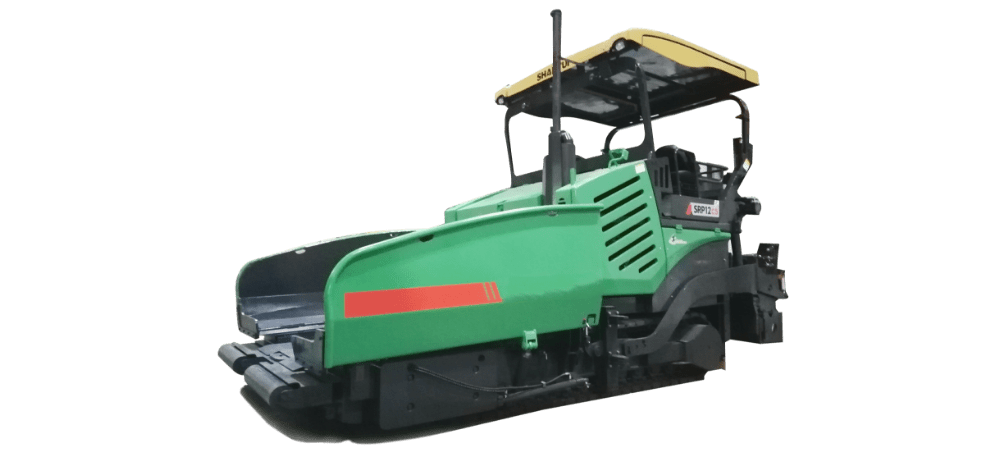

The SMC-PVR Series Paver is a high-performance asphalt paving solution engineered for modern infrastructure projects that demand precision, efficiency, and durability. Equipped with a powerful hydraulic drive system, advanced traction design, and operator-friendly controls, this series ensures exceptional paving quality across a wide range of working conditions.
With paving widths ranging from 3.0 to 13.0 meters, the Paver adapts seamlessly to diverse project requirements—from narrow urban lanes to multi-lane expressways.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SRP12C5EA | SMC-CE-SRP12C5MA | SMC-CE-SRP09C5SA |
| Maximum paving width(m) | 12.5 | 12.5 | 9 |
| Maximum paving thickness(mm) | 500 | 500 | 500 |
| Engine power(kW) | 243 | 243 | 213 |
| External dimensions | 7800*12500*3950 | 7000*12500*3950 | 7800*9000*3950 |
| Engine model | SC9DF330.1G3 | SC9DF330.1G3 | SC9DF290.1G3 |
| Overall weight(T) | 33 | 33 | 29 |
| Minimum paving width(m) | 2.5 | 2.5 | 3 |
| Paving speed(m/min) | 0-25 | 0-25 | 0-25 |
| Travel speed(km/h) | 0-3 | 0-3 | 0-3 |
| Theoretical productivity(T/h) | 1000 | 1000 | 1000 |
| Hopper capacity(T) | 16 | 16 | 16 |
| Emissions | Eu stage IIIA | Eu stage IIIA | Eu stage IIIA |
