Description

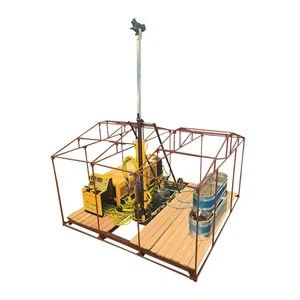

The XZHP-800A is a state-of-the-art, portable full hydraulic drilling rig designed for high-efficiency coring operations in remote, rugged, or confined terrains. Engineered with modularity and field flexibility in mind, it enables quick transport, setup, and directional drilling from 30° to 90°—all without a tower.
Whether you are conducting geological surveys, mineral exploration, or core drilling in mountainous regions, the XZHP-800A delivers superior performance, intuitive controls, and top-tier international components to ensure reliability in all working environments.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-800A | ||
| Drilling Depth | |||
| (BTW Rods) | 800 m | ||
| (NTW Rods) | 600 m | ||
| (HTW Rods) | 300 m | ||
| Drill Rod Length | 1.5 m | ||
| Coring Length | 3.0 m | ||
| Drilling Angle | 30°–90° | ||
| Rig Power Source | Kubota V1505T Diesel Engine (3×31.5 kW @ 3000 rpm) | ||
| Power Head Torque | 700 Nm | ||
| Power Head Max Speed | 1800 rpm | ||
| Feed Stroke | 1.83 m | ||
| Feeding Force | 30 kN | ||
| Lifting Force | 60 kN | ||
| Hydraulic Winch Speed | 160 m/min | ||
| Winch Lifting Capacity | 800 kg | ||
| Wire Rope Diameter | 8 mm | ||
| Wire Rope Length Capacity | 850 m | ||
| Total Rig Height (at 90°) | 5.0 m | ||
| Machine Footprint | 4.0 m × 4.0 m | ||
| Tent Footprint | 4.3 m × 4.3 m | ||
| Total Weight | 3165 kg | ||
| Heaviest Module | 260 kg | ||
| Heaviest Module | 260 kg | ||
| Diesel Engine Supplier | Kubota (Japan) | ||
| Gear Pump Supplier | Danfoss (Denmark) | ||
| Power Head Motor Supplier | Bomke (Germany) | ||
| Winch Motor Supplier | Danfoss (Denmark) | ||
| Hydraulic Valves Supplier | Parker, Sun (USA) | ||
| Mud Pump Supplier | Elephant (China) | ||
| Control Unit Dimensions | 790 × 560 × 1100 mm | ||
| Diesel Unit Dimensions (each) | 950 × 605 × 882 mm | ||
| Fuel Tank Dimensions | 890 × 520 × 860 mm | ||
| Hydraulic Tank Dimensions | 945 × 505 × 882 mm | ||
| Mud Pump Dimensions | 690 × 640 × 350 mm | ||
| Winch Dimensions | 770 × 525 × 395 mm | ||
| Frame Dimensions (mast included) | 2760 × 500 × 400 mm | ||
| Control Unit Weight | 190 kg | ||
| Diesel Units (3 total) | 780 kg (260 × 3) | ||
| Fuel Tank Weight | 180 kg | ||
| Hydraulic Tank Weight | 165 kg | ||
| Mud Pump Weight | 175 kg | ||
| Winch Weight | 215 kg | ||
| Frame Weight | 300 kg | ||
| Control Holder Weight | 90 kg | ||
| Tent System Weight | 200 kg | ||
| H-Beams (8 pcs) | 544 kg (68 × 8) | ||
| Boards (17 pcs) | 272 kg (16 × 17) | ||
| Strut Set Weight | 54 kg |
