Description

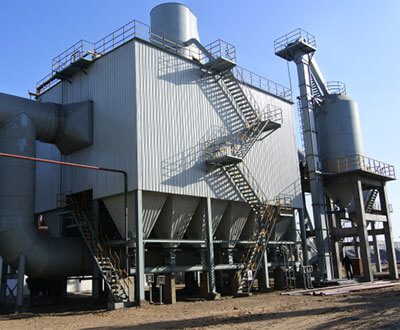

SMC Pulse Jet Bag Filter – High-Efficiency Dust Collection for Demanding Industries
The SMC Pulse Jet Bag Filter—also known as a pulse jet fabric filter, pulse jet baghouse, or pulse jet dust collector—is a high-performance dust removal system designed to meet the rigorous demands of industrial filtration. As one of SMC’s flagship dust control solutions, this system stands out for its superior performance, especially in cement plants and other heavy-duty industrial environments.
Engineered using advanced pulse jet cleaning technology, the filter delivers robust performance for gases with high dust concentrations. It is widely used across cement, metallurgical, electric power, mining, and chemical industries.
Key Features:
Advanced pulse jet cleaning ensures strong ash removal and extended filter life
High dust removal efficiency with low emission levels
Energy-efficient operation with minimal air leakage
Compact design minimizes installation footprint while maximizing performance
Reliable material recovery, supporting both environmental and economic goals
As an essential component in industrial environmental systems, the SMC Pulse Jet Bag Filter not only controls air pollution but also contributes to resource recovery—making it an indispensable solution for modern industrial operations.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC420-2×6 | SMC462-2×4 | SMC462-2×5 |
| Air Volume（m³/h） | 240000-302400 | 170000-221700 | 220000-277000 |
| Filtering Area（m³） | 5040 | 3696 | 4620 |
| Number Of Bags | 1680 | 1232 | 1540 |
| Filtration Velocity（m/min） | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 |
| Equipment Resistance（pa） | 1500 | 1500 | 1500 |
| Cleaning Pressure（Mpa） | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Air Consumption（m³/min） | 5 | 5 | 5 |
| Filter Bag Specifications（mm） | Φ160×6000 | Φ160×6000 | Φ160×6000 |
| Weight（t） | 175.6 | 115 | 142 |
