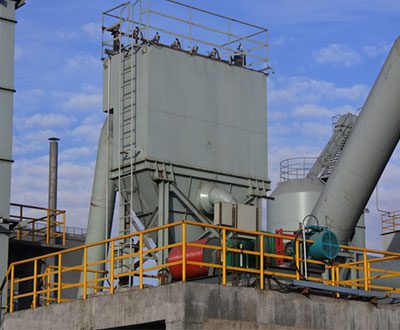

SMC Pulse Jet Fabric Filter – High-Efficiency Dust Collection for Industrial Applications
The SMC Pulse Jet Fabric Filter is a high-efficiency, outdoor-rated air box pulse bag filter designed to handle heavy dust loads across a broad range of industrial environments. Trusted by operations in cement, power, metallurgy, steel, and chemical sectors, this robust system ensures effective dust capture even under extreme conditions—with inlet dust concentrations up to 1000 g/Nm³.
By eliminating the need for a cyclone pre-collector, the SMC system achieves up to 99.9% collection efficiency, supporting cleaner air and full compliance with environmental regulations.
Key Features:
Versatile industrial use: Ideal for cement crushers, rotary kilns, coal mills, packing machines, clinker coolers, and more
Flexible configurations: Available in 33 model specifications across 4 series, with 32, 64, 96, or 128 filter bags per chamber
High-capacity design: Filter bag diameter of 130 mm, available in lengths of 2450 mm or 3060 mm
Precision performance: Effective in both process dust recovery and finished product separation
Built to last: Engineered for long-term outdoor operation under demanding conditions
Whether for dust control or material recovery, the SMC Pulse Jet Fabric Filter offers a durable, cost-effective solution for clean, efficient plant operations.
Technical Details
Description | |||
---|---|---|---|
Model | SMC32-3(M) | SMC32-4(M) | SMCS32-5 |
Air Volume(m³/h) | 6690 | 8930 | 11160 |
Filtering Area(m³) | 93 | 124 | 155 |
Number Of Filter Bags | 96 | 128 | 160 |
Filtration Velocity(m/min) | 1.2-2.0 | 1.2-2.0 | 1.2-2.0 |
Equipment Resistance(pa) | 1470-1770 | 1470-1770 | 1470-1770 |
Cleaning Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air Consumption(m³/min) | 0.55 | 0.55 | 0.55 |
Filter Bag Specifications(mm) | Φ130×2450 | Φ130×2450 | Φ130×2450 |
Weight(t) | 3.14(3.25) | 3.94(3.99) | 4.44 |
