Description

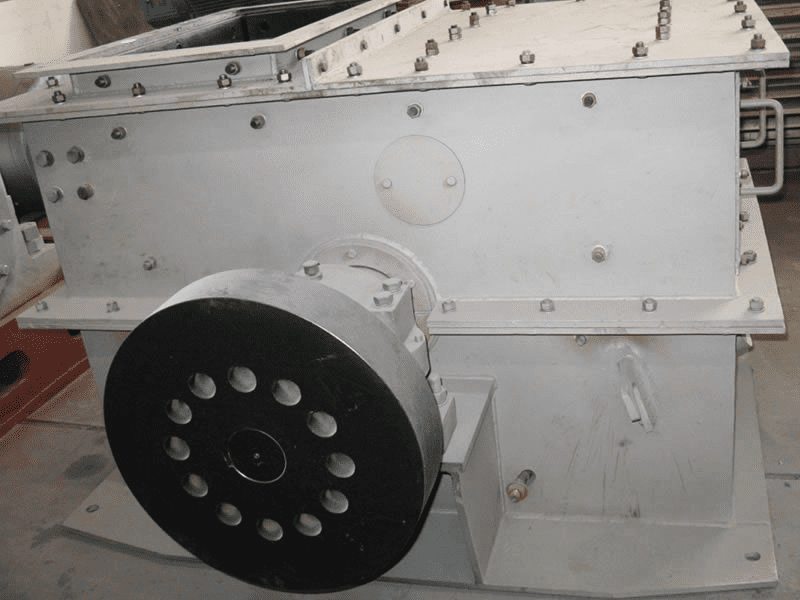

The SMC ring hammer crusher is an impact rotor crusher fitted with a ring hammer. It is designed for crushing brittle mineral materials with a compressive strength below 320 MPa, including coal, coal gangue, coke, slag, shale, loose limestone, and similar substances.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-0604 | SMC-0808 | SMC-1010 |
| Rotor working diameter / length(mm) | 600×400 | 800×800 | 1000×1000 |
| Rotor speed (r/min) | 970 | 740 | 740 |
| Inlet size (mm) | 460×530 | 470×828 | 586×1040 |
| Maximum feed size (mm) | 200 | 200 | 300 |
| Discharge granularity (mm) | 3-30 | 3-30 | 3-30 |
| Processing capacity (t/h) | 22-33 | 75-105 | 200-245 |
| Motor power (kW) | 18.5 | 45 | 110 |
| Weight (excluding motor)(kg) | 1430 | 3600 | 6100 |
| physical dimension (mm) | 1984x1410x800 | 2801.5x1720x1090 | 3554x2000x1340 |
