Description

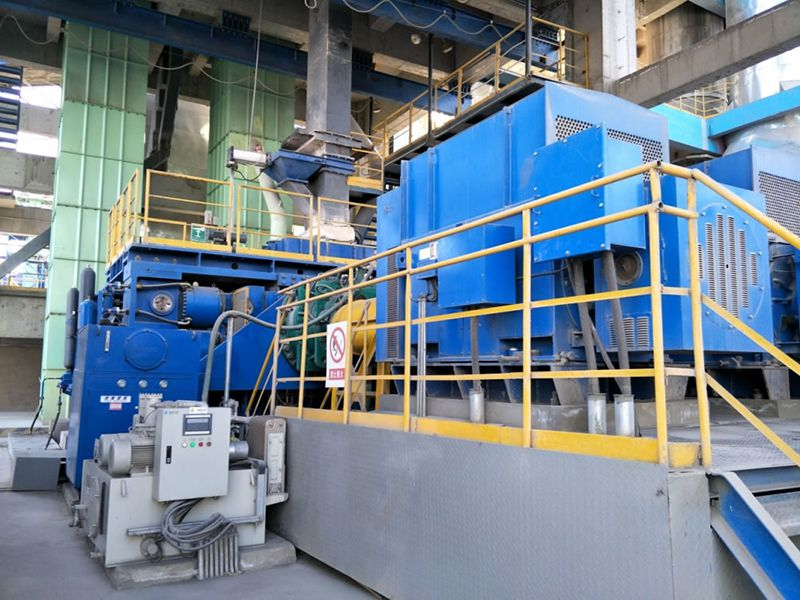

The SMC roller press is designed for cement grinding applications. Compared to traditional pre-grinding systems such as ball mills, which often have high energy consumption and lower efficiency, the SMC roller press uses less energy and operates with reduced noise levels.
This roller press can boost grinding capacity by 50-100% compared to ball mill systems, while cutting the grinding system’s power consumption by 30-40% and lowering finished cement power use by 20-30%. The compressed material is easier to grind, with particles around 0.08mm making up 30-35% and particles smaller than 20mm accounting for 65-85%.
The SMC cement mill roller press is suitable for grinding raw materials, clinker, slag, and steel slag in cement production lines, as well as in other industries including mining, steel, chemical processing, power generation, and metallurgy.
Technical Details
| Description | |||
|---|---|---|---|
| Model | LRP120-45 | LRP120-80 | LRP140-65 |
| Capacity (t/h) | 140~190 | 250~340 | 200~300 |
| Installed Power (kw) | 2×250 | 2×500 | 2×560 |
| Roller Linear Speed (m/s) | 1.2~1.44 | 1.2~1.44 | 1.43~1.65 |
