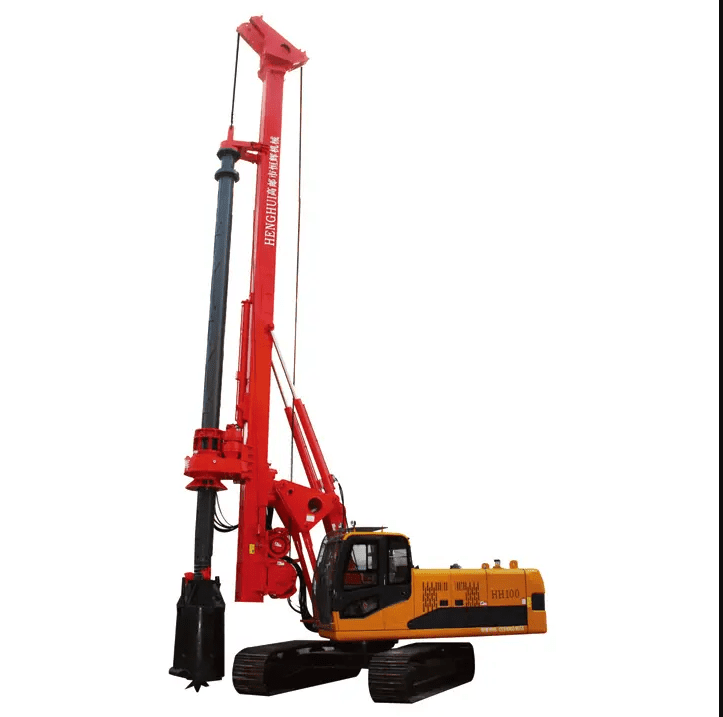

SMC-CE-60 and SMC-CE-100 Rotary Drilling Rigs – Advanced, Self-Erecting Solutions for Modern Construction
The SMC-CE-60 and SMC-CE-100 rotary drilling rigs are newly engineered self-erecting machines that incorporate advanced hydraulic load-back systems and integrated electronic control technology. Designed to meet world-class standards, these rigs offer a combination of structural simplicity, compact form factor, and enhanced reliability.
With a user-friendly interface and modernized design, they ensure efficient and precise drilling across a wide range of construction environments—making them the ideal choice for today’s demanding job sites.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-60 | SMC-CE-100 | |
| Engine | Model | Cummins | Cummins |
| Rated power | (kw) 97 | (kw) 103 | |
| Rated speed | (r/min) 2200 | (r/min) 2300 | |
| Rotary head | Max.output torque | (kN´m) 60 | (kN´m)107 |
| Drilling speed | (r/min) 0-80 | (r/min) 0-50 | |
| Max. drilling diameter | mm | (mm) 1000 | (mm) 1200 |
| Max. drilling depth | (m) 21 | (m) 25 | |
| Crowd cylinder system | Max. crowd force | (Kn) 90 | (Kn) 90 |
| Max. extraction force | (Kn) 90 | (Kn) 90 | |
| Max. stroke | (mm) 2000 | (mm) 2500 | |
| Main winch | Max. pull force | (Kn) 80 | (Kn) 100 |
| Max. pull speed | (m/min) 80 | (m/min) 60 | |
| Wire rope diameter | (mm) 18 | (mm) 20 | |
| Auxiliary winch | Max. pull force | (Kn) 40 | (Kn) 40 |
| Max. pull speed | (m/min) 40 | (m/min) 40 | |
| Wire rope diameter | (mm) 10 | (mm)16 | |
| Mast inclination Side/ forwards/ backwards | (°) ±4/5/90 | ±4/5/90 | |
| Interlocking Kelly bar | ɸ273*4*7 | ɸ299*4*7 | |
| Undercarrige | Max. traveling speed | (km/h) 1.6 | (km/h) 1.6 |
| Max. rotation speed | (r/min) 3 | (r/min) 3 | |
| Chassis width | (mm) 2600 | (mm) 2600 | |
| Tracks width | (mm) 600 | (mm) 600 | |
| Caterpillar grounding Length | (mm) 3284 | (mm) 3284 | |
| Working Pressure of Hydraulic System | (Mpa) 32 | (Mpa) 32 | |
| Total weight with kelly bar | (kg) 26000 | (kg) 26000 | |
| Dimension | Working (Lx Wx H) | (mm) 6100x2600x12370 | (mm) 6100x2600x12370 |
| Transportation (Lx Wx H) | (mm) 11130x2600x3450 | (mm) 11130x2600x3450 |
