Description

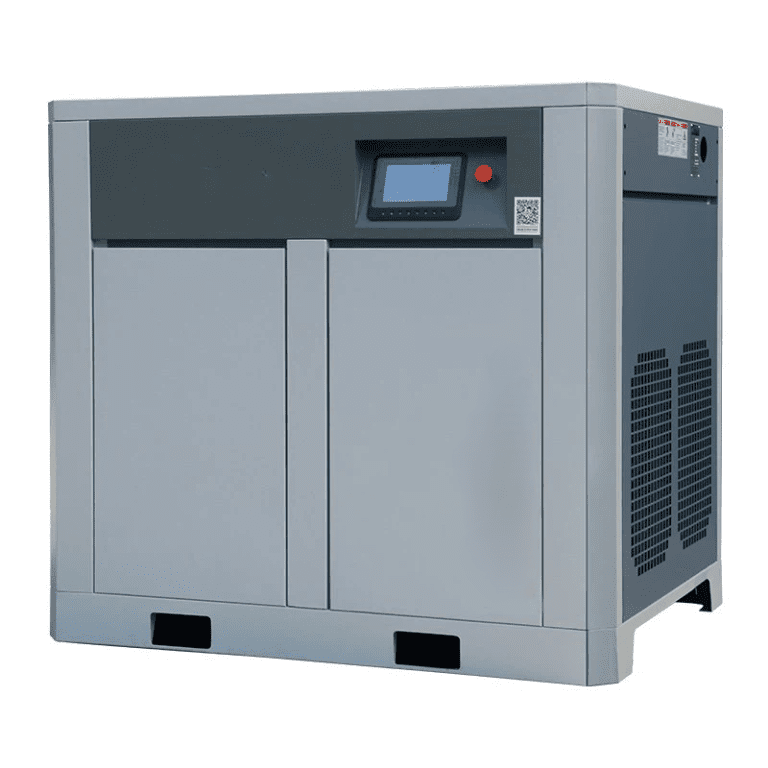

SMC Rotary Screw Air Compressors, widely recognized as versatile and reliable “general purpose machinery,” are essential for compressing and increasing air pressure to power a variety of industrial applications. The compressed air is transported through pipelines to supply pneumatic equipment, assembly line machinery, control instruments, and automation devices across factory workshops. Common uses include inflation tasks such as tire inflation, blow molding, pipe and bottle blowing, and food filling. They also power control instruments in processing centers, machine tools, printing machines, power plant auxiliary controls, train braking systems, vehicle door operations, and control valves. Additionally, these compressors drive equipment like air guns, nail guns, manipulators, pneumatic drills, and picks, and support surface treatments including metal sandblasting and painting.
Technical Details
| Description | |||
|---|---|---|---|
| Model | 55SFe-8 | 75SFe-8 | 90SFe-8 |
| Electric motor power | 55kW | 75kW | 90kW |
| Air discharge capacity FAD | 4-9.7 m3/min | 5-12.6 m3/min | 6.2-15.5 m3/min |
| Rated speed | 3000RPM | 3000RPM | 3000RPM |
| Weight | 950kg | 1140kg | 1420kg |
| Dimensions (L×W×H)mm | 1610×1240×1460 | 1700×1230×1540 | 1850×1290×1580 |
| Air discharge valve size | DN40 (R1-1/2”) | DN50 (R2”) | DN50 (R2”) |
