Description

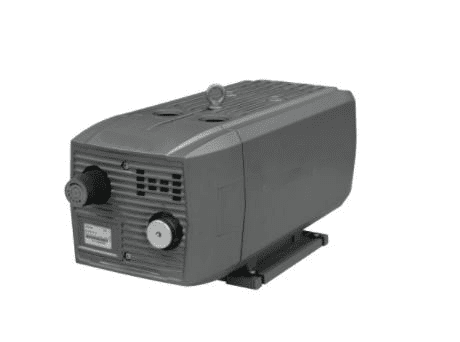

The SMC-HTE-VD 16, VD 25, and VD 40 are single-stage dry rotary vane vacuum pumps, directly coupled to an electric motor for compact and efficient operation. Designed for evacuating closed systems or maintaining a constant vacuum between 150–900 mbar (absolute), they are ideal for various industrial and laboratory applications.
Optional accessories include:
- External suction filter
- Vacuum gauges/vacuum switches
- Manometers/pressure switches
These pumps offer reliable, low-maintenance performance with flexible installation and precise vacuum control.
Technical Details
| Description | |||
|---|---|---|---|
| Models | SMC-HTE 16 | SMC-HTE- 25 | SMC-HTE- 40 |
| Pumping speed m³/h (50Hz) | 16 | 25 | 40 |
| Pumping speed m³/h (60Hz) | 19 | 30 | 48 |
| Final pressure (abs.) | ≤ 150 mbar | ≤ 150 mbar | ≤ 150 mbar |
| Motor power 3 ~kW (50Hz) | 0,55 | 0,75 | 1,25 |
| Motor power 3~kW (60Hz) | 0.70 | 0,90 | 1,50 |
| Motor power 1 ~kW (50Hz) | 0,55 | 0,75 | / |
| Motor power 1 ~kW (60Hz) | 0,70 | 0,90 | / |
| Number of laps rpm (50Hz) | 1500 | 1500 | 1500 |
| Number of laps rpm (60Hz) | 1800 | 1800 | 1800 |
| Dimensions | 457x238x228 | 525x256x258 | 579x256x258 |
| Weight kg | 25 | 33 | 36 |
| Connections | |||
| Inlet | 1/2" Gas | 3/4" Gas | 3/4" Gas |
| Outlet | 1/2" Gas | 3/4" Gas | 3/4" Gas |
