Description

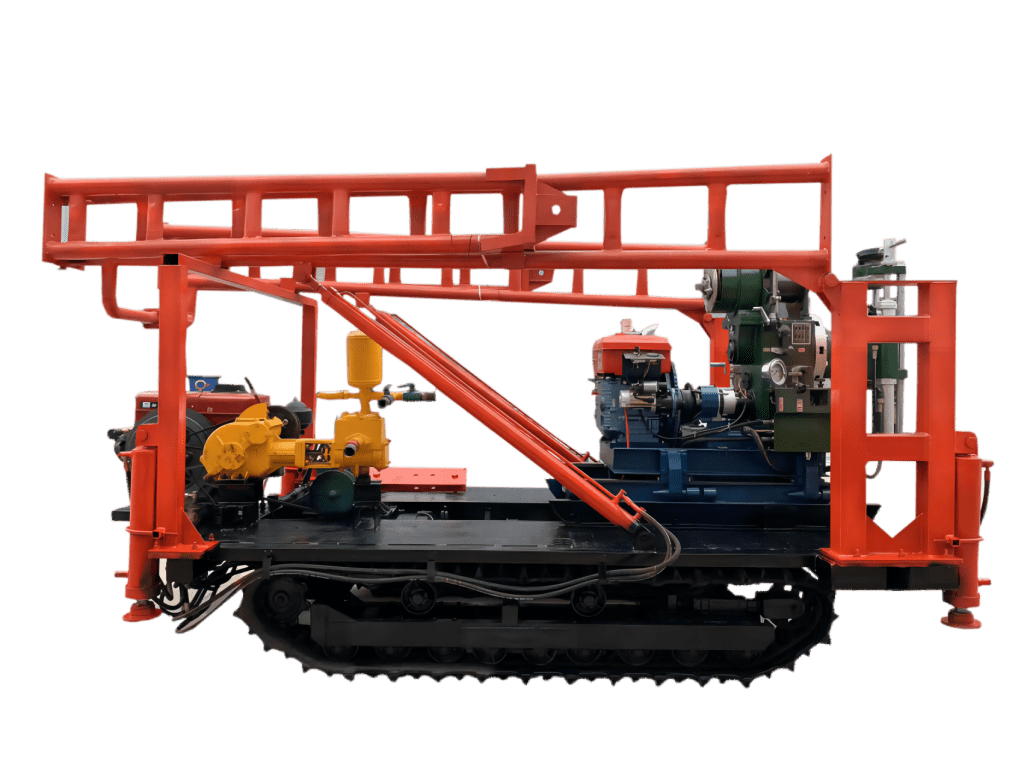

The SMC-DTH-MULTIRIG200 is a self-propelled multifunctional exploration drilling rig engineered for high-speed operations in diverse geological formations. Ideal for survey drilling, geophysical investigations, roadbed exploration, and even small-scale blast hole drilling, this rig is a top choice for construction and resource exploration teams.
With hydraulic automatic feed, rod exchange capability via ball clamping (without shutdown), and shift slide options for rapid tool replacement, it boosts efficiency and reduces operator fatigue. Its compact yet powerful design ensures optimal performance in both soft soil and rock strata up to hardness level 9.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-200YY | ||
| Drilling Depth | 200 m | ||
| Open Hole Diameter | 325 mm | ||
| End Hole Diameter | 75 mm | ||
| Drill Rod Diameter | 42–60 mm | ||
| Drilling Angle | 90°–75° | ||
| Engine Power | 15 kW | ||
| Weight (Without Power Unit) | 1,150 kg | ||
| Dimensions (L×W×H) | 2.7 × 0.9 × 1.6 m | ||
| Spindle Speed (r/min) | 64 / 128 / 287 / 557 | ||
| Stroke | 450 mm | ||
| Max Torque | 2200 N·m | ||
| Max Thrust | 40 kN | ||
| Lifting Force | 60 kN | ||
| Single Rope Lifting Force | 2,400 kg | ||
| Lifting Speed | 0.12–0.95 m/min | ||
| Rope Diameter | 12.5 mm | ||
| Roll Capacity | 35m | ||
| Drill Mast Load Capacity | 5 tons | ||
| Drill Mast Height | 6 m | ||
| Mud Pump Displacement | 145 L/min | ||
| Max Pump Pressure | 2 MPa | ||
| Pump Stroke Rate | 93 times/min | ||
| Inlet Hose Diameter | 51 mm | ||
| Outlet Hose Diameter | 32 mm |
