Description

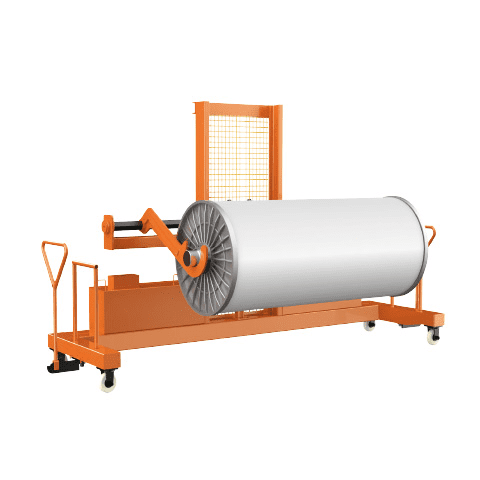

Semi-electric Warp Beam High Lift Truck is an electro-hydraulic solution specifically designed for lifting upper warp beams with improved efficiency and minimal manual effort. This semi-electric high lift truck combines electric lifting power with manual transportation, offering a cost-effective alternative to fully electric models. Its ready-to-use, plug-and-play design requires no installation, allowing immediate deployment on-site. Ideal for textile operations aiming to upgrade beam handling without complex setup, this truck enhances lifting performance while maintaining operator control and safety. With its robust construction, ease of use, and focus on productivity, the SMC-TE-HBT-04I is a reliable choice for streamlining warp beam handling in demanding environments.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-TE-HBT-04I | ||
| Carrying Capacity | 600-1000kgs for Bottom Beam | ||
| Beam Barrel Diameter | 100-400mm | ||
| Hydraulic Unit | One | ||
| Beam Flange Diameter | 600-1000mm | ||
| Hydraulic Cylinders | Two | ||
| Lifting Height | 2300mm |
