Description

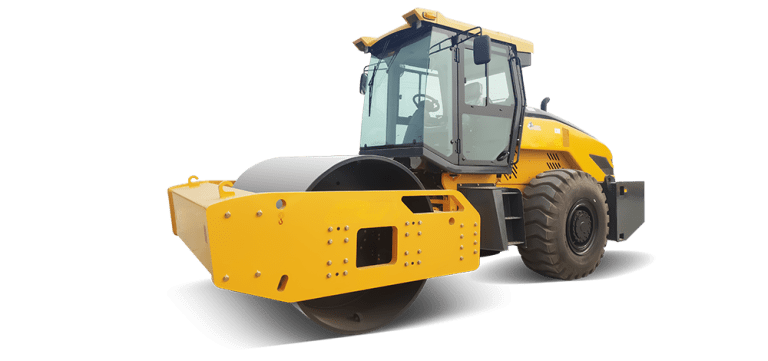

Strong Mac Single Drum Road Rollers, including the SR08MA, SR10-B6, and SR10-C6, are engineered for superior compaction performance across a wide range of job sites. Equipped with reliable engines from Xinchai and Weichai, these rollers deliver high power, fuel efficiency, and large excitation forces to handle everything from highway foundations to clay-rich soils. Featuring patented three-in-one vibrating drums and advanced hydraulic systems, they ensure uniform compaction and strong climbing ability. Operator comfort is prioritized with spacious cabs, panoramic visibility, and user-friendly controls, while centralized filter layouts and wide-opening hoods make maintenance simple. Ideal for compacting sand, gravel, crushed stone, and other semi-adhesive materials, Strong Mac single drum rollers are the perfect choice for roadwork, railways, and large infrastructure projects.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SR08MA | SMC-CE-SR10-B6 | SMC-CE-SR10-C6 |
| External dimensions(mm) | 5130*1830*2570 | 5890*2305*3160 | 5886*2305*3185 |
| Engine brand | Xinchai | Weichai | WP4.6N |
| Power/speed(kW/rpm) | 42/2200 | 97.5/2200 | 129/2200 |
| Operating weight(kg) | 8000 | 10500 | 10800 |
| Front and rear load distribution | 3850/4150 | 6000/4500 | 6000/4800 |
| Vibration frequency low/high(Hz) | 42 | 30/36 | 30/36 |
| Minimum turning radius(mm) | 5500 | 6400 | 6400 |
| Excitation force(kN) | 85 | 270/180 | 270/180 |
| Amplitude(mm) | 0.7 | 2.0/1.0 | 2.0/1.0 |
| Gradeability | 0.25 | 0.48 | 0.45 |
| Speed(km/h) | For：2.2/4.2/7.5/12.5/15.5；Rev：2.5 | 0-5.5，0-10 | 0-6/0-10 |
| Emissions (Indicated as per China standards) | Eu stage II | Eu stage II | Eu stage III |
