Description

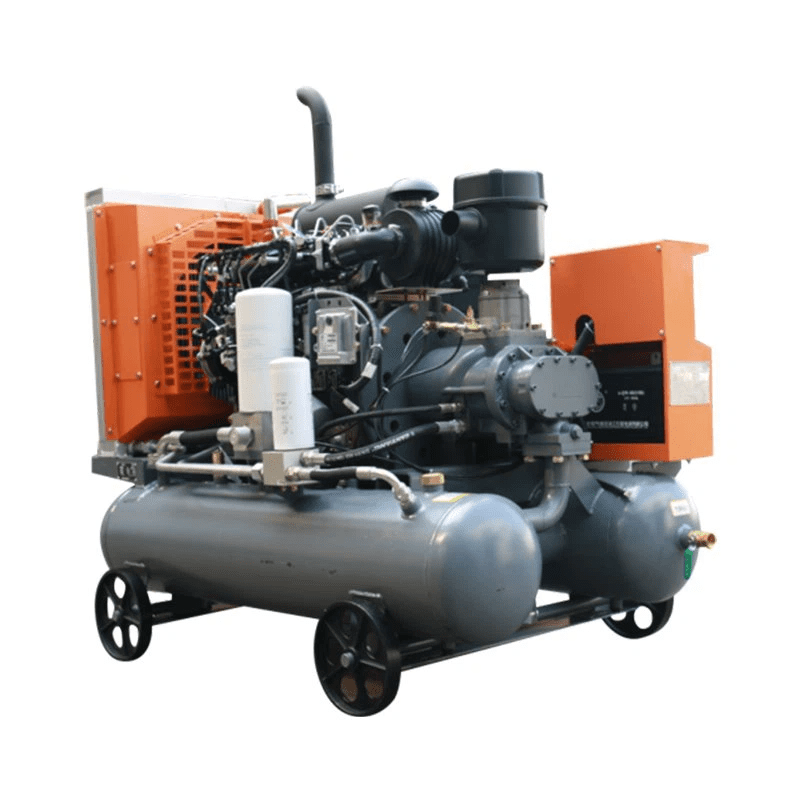

Single-stage diesel air compressors are powered by diesel engines, offering a cost-effective, portable, and high-powered solution for industrial applications. Due to their affordability and mobility, they are widely chosen in mining and engineering operations to support reliable and efficient on-site air supply.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SPDC 175S-8 | SPD 175S-7 | |
| Engine China II | Xichai 4DW91-56G2 / 41 kW (55 HP) | Xichai 4DW91-56G2 / 41 kW (55 HP) | |
| Diesel tank volume | 50L | 65L | |
| Air End | Single Stage Compression | Single Stage Compression | |
| Working Rpm | 2,500 rpm | 2,500 rpm | |
| Rated FAD | 5m³/min | 5m³/min | |
| Rated Pressure | 8 bar | 7 bar | |
| Weight | 730kg | 860 kg | |
| Type | Air compressor only (without frame) | 2 wheel | |
| Rated exhaust pressure | 0.8MPa | 0.8MPa | |
| Exhaust oil content | ≤ 3 PPM | ≤ 3 PPM | |
| Exhaust temperature | 80℃-110℃ | 80℃-110℃ | |
| Voltage | 380V | 380V | |
| Frequency | 50Hz | 50Hz | |
| Noise level (dB) | ≤85dB | ≤85dB | |
| Minimum reservoir pressure | 4.5bar | 4.5bar | |
| Maximum reservoir pressure (compressor unloading) | 8bar | 7bar | |
| Minimum starting temperature | -10℃ | -10℃ | |
| Maximum ambient temperature | 45℃ | 45℃ | |
| Dimensions (L×W×H)mm | 1,670×990×1,550 | 2,400×1,330×1,550 |
