Description

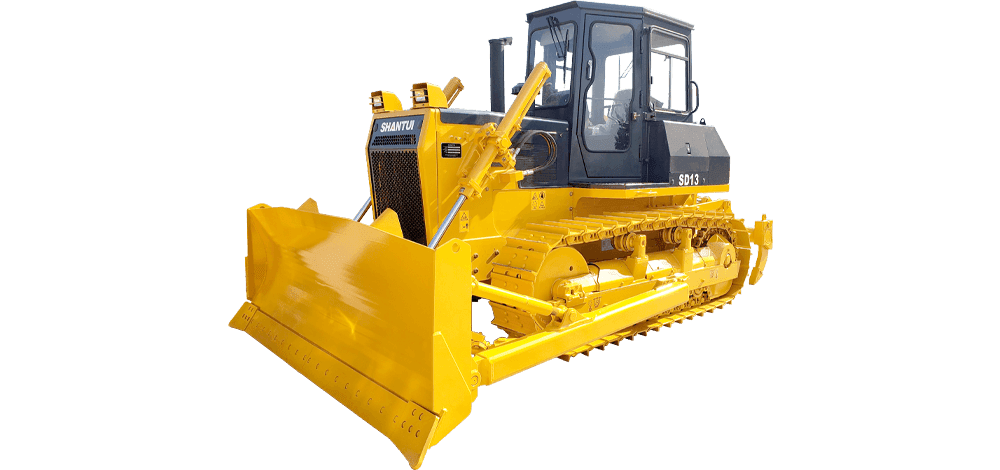

Strong Mac Small Bulldozers, including the SD13, DH08-B3 XL, and DH10-B3 XL, deliver powerful, efficient performance in compact, versatile designs. Engineered with robust Weichai engines and matched with liable four-wheel-one-track chassis, these dozers offer high traction, low fuel consumption, and excellent operational reliability. Ideal for confined and demanding job sites, they feature straight tilt or six-way blades for enhanced cutting force and flexible movement across terrains like frozen soil, clay, and sand. Their ergonomically designed cabs ensure operator comfort, while intelligent touchscreens and exterior maintenance layouts simplify upkeep. Perfect for construction, landscaping, and municipal work, Strong Mac small bulldozers combine durability, comfort, and adaptability in every task.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SD13 | SMC-CE-DH08-B3 XL | SMC-CE-DH10-B3 XL |
| Overall weight(kg) | 13700 | 9580 | 9580 |
| Engine brand | SC8D143G2B1 | WEICHAI | WEICHAI |
| Rated power/rated speed(kW/rpm) | 105/1900 | 70kW/2200rpm | 82/2000 |
| Machine external dimensions(mm) | 4460*2345*2980 | 4568x2680x2950 | 4580x2860x2950 |
| Track center distance(mm) | 1885 | 1650 | 1650 |
| Track shoe width(mm) | 460 | 460 | 460 |
| Ground contact length(mm) | 2380 | 2225 | 2320 |
| Fuel tank capacity(L) | 280 | 197 | 197 |
| Blade type | Straight-tilt blade/ Angle blade | PAT | PAT |
| Blade capacity(m³) | 3/2.5 | 1.93 | 2.4 |
| Emissions (Indicated as per international standards) | China-II | Eu stageⅡ | Eu stageⅡ |
