Description

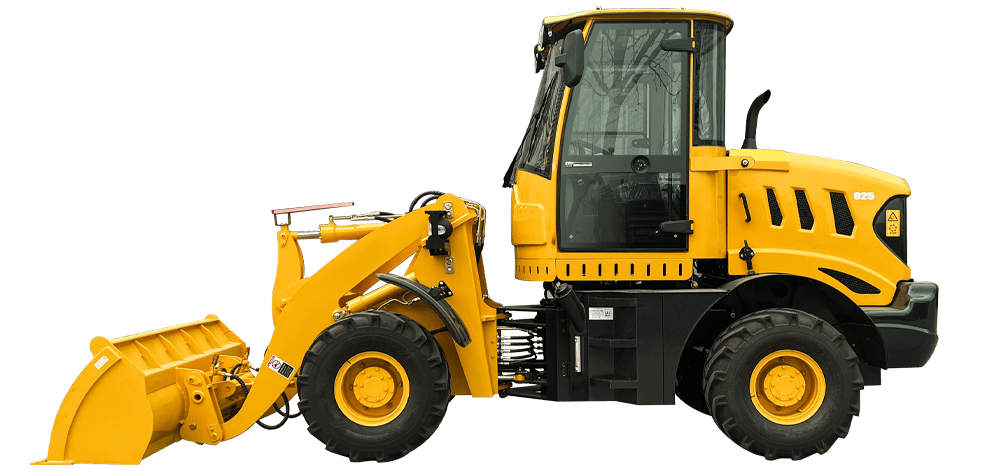

The Small Loader Series is designed for agility, efficiency, and versatility across a wide range of working conditions. Whether powered by traditional fuel or modern electric systems, these loaders deliver powerful performance with enhanced operator comfort and simplified maintenance.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-L16-B2 | SMC-CE-L20-B2 | SMC-CE-LE20-X5 |
| Total power(kw) | 65 | 76 | 72 |
| Operating weight(kg) | 4780 | 5800 | 6200/6400 |
| Bucket capacity(m³) | 1 | 1.1 | 1.2 |
| External dimensions(mm) | 6146×2040×2880 | 6510×2250×2880 | 6100*2270*2600 |
| Rated loading capacity(t) | 1.6 | 2 | 2 |
| Maximum dumping height(mm) | 3100 | 3300 | / |
| Dumping distance(mm) | 1075 | 1000 | / |
| Subtotal(s) | 11.2 | 11.2 | ≤9.5 |
| Wheelbase(mm) | 2310 | 2595 | 2300 |
| Maximum speed(km/h) | 20 | 18 | 46011 |
| Emissions (Indicated as per international standards) | Eu stage II | Eu stageⅡ | / |
