Description

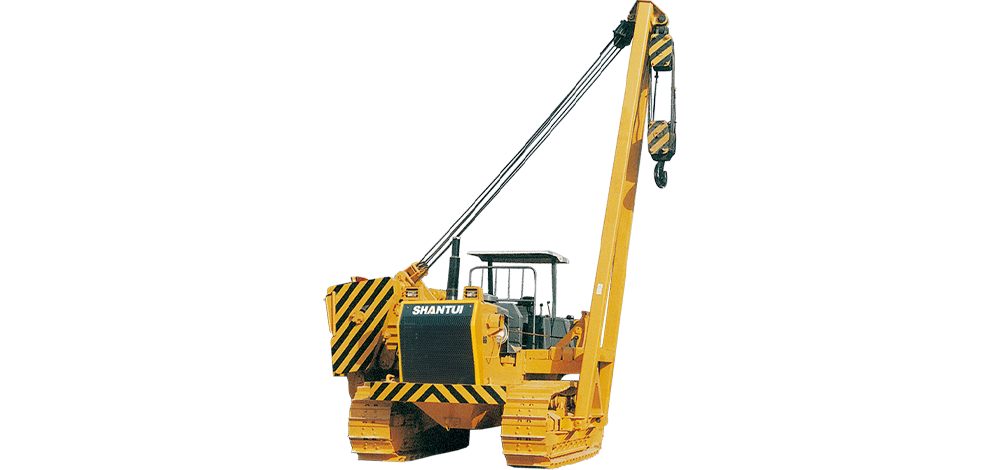

This pipelayer is a specialized piece of construction equipment built on a rugged crawler bulldozer chassis, specifically engineered for the installation of oil and gas transmission pipelines. Developed to operate efficiently in off-road and remote environments, this machine delivers high lifting capacity, robust structural stability, and industry-standard safety — making it ideal for long-distance pipeline construction.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-SP25Y | SMC-CE-SP45Y | |
| Overall weight(kg) | 23800 | 34000 | |
| Rated power/rated speed(kW/rpm) | 131/1850 | 179/2000 | |
| Maximum lifting weight(kg) | 25000 | 45000 | |
| External dimensions(mm) | 4130x2610x3050 | 4760x2860x3300 | |
| Engine model | Weichai WD10G | Cummins NT855-C280S10 | |
| Track center distance(mm) | 2050 | 2250 | |
| Track shoe width(mm) | 560 | 610 | |
| Ground contact length(mm) | 2635 | 3050 | |
| Fuel tank capacity(L) | 300 | 440 | |
| Working device | Suspension rod | Suspension rod | |
| Emissions | EU stageⅡ | EU stageⅠ |
