Small water well drilling rig

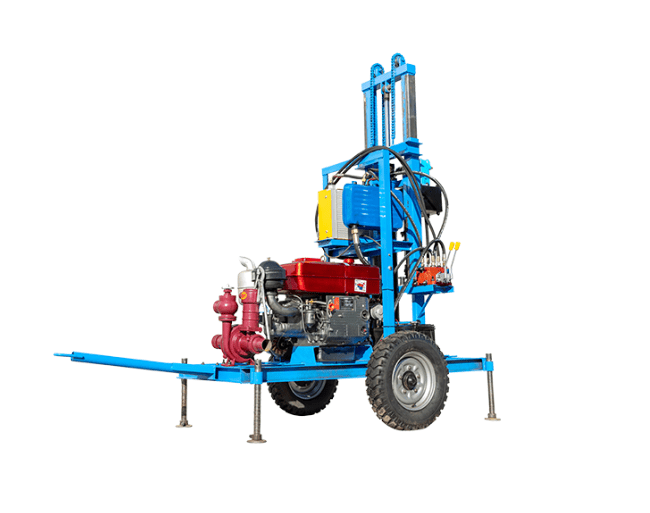

The Small Diesel Hydraulic Well Drilling Rig is a versatile and compact solution engineered for a wide range of water well drilling applications. Powered by a robust diesel engine available in 22hp, 25hp, and 35hp variants, this rig delivers reliable performance for household wells, factory water extraction, farmland irrigation, and installation projects such as water air conditioners and solar water heaters. It also supports construction site piling, expanding its usability beyond conventional drilling tasks.

Designed to accommodate drilling diameters from 10cm to 35cm, the rig utilizes 50mm diameter drill rods, each 1.5 meters in length, enabling efficient drilling operations up to depths of 150 meters. Its compatibility with multi-caliber alloy drill bits—including diamond core options—allows effective penetration through diverse soil conditions such as soil layers, quicksand, and even rocky substrates.

Weighing 550 kilograms and compact in size (1190mm × 1200mm × 1800mm), the rig combines portability with operational strength. Its hydraulic drilling system ensures precise control and steady drilling speed, making it well-suited for both professionals and contractors requiring an adaptable, durable drilling rig for varied terrain and project scales.
