Description

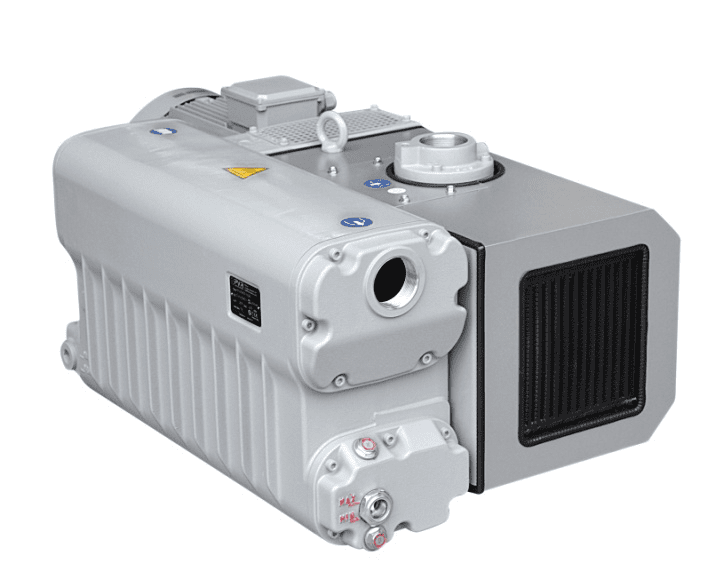

The SMC-HTE-28 and 40 are single-stage rotary vane vacuum pumps with oil recirculation, designed for compact and efficient vacuum generation. The rotor is directly keyed onto the motor shaft, reducing mechanical complexity and enhancing reliability.
Each pump features an oil mist separation system for cleaner exhaust and lower oil consumption. A gas ballast is integrated to prevent condensation when handling small amounts of steam, making these pumps ideal for light industrial and laboratory applications where consistent, low-maintenance vacuum is required.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-28 | SMC-HTE-40 | |
| Pumping speed m³/h 50Hz | 28 | 42 | |
| Pumping speed m³/h 60Hz | 33 | 51 | |
| Ultimate pressure with gas ballast (abs.) mbar | ≤ 2 (≤ 20 / B) | ≤ 2 (≤ 20 / B) | |
| Motor power kW 50Hz | 0,75 | 1,1 | |
| Motor power kW 60Hz | 0,9 | 1,3 | |
| Motor speed rpm 50Hz | 3000 | 3000 | |
| Motor speed rpm 60Hz | 3600 | 3600 | |
| Water vapour tolerance mbar | 30 | 30 | |
| Water vapour pumping capacity kg/h | 0,65 | 0,9 | |
| Lubricant charge l | 0,8 | 1 | |
| Sound pressure level dB(A) 50Hz | 65 | 68 | |
| Sound pressure level dB(A) 60Hz | 67 | 69 | |
| Dimensions L x B x H mm | 332x266x224 | 415x266x224 | |
| Weight kg | 26 | 30 | |
| Connections | |||
| Inlet | 1/2” Gas | 1/2” Gas | |
| Outlet | 1/2” Gas | 1/2” Gas |
