Description

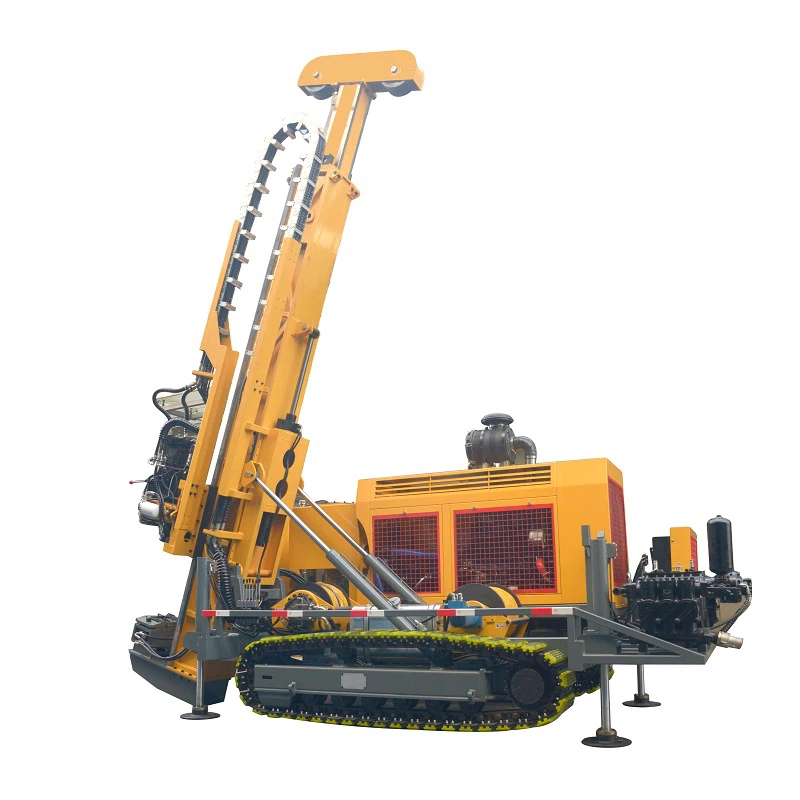

SMC-DTH-18A core drill rig is a new type of fully hydraulic core drilling rig that our company has continuously optimized and improved through in-depth analysis and research on advanced technologies of similar drilling rigs at home and abroad, and based on years of production practice and market needs.
The hydraulic pumps, main valve, hydraulic motor and other components of the SMC-DTH-18A core drilling rig are all imported from international brands and equipped with wireless remote-controlled steel tracks for easy handling of various complex work sites. The power head is driven by a variable pump and variable motor, with mechanical three speed stepless speed regulation, advanced and simple structure, and extremely strong drilling ability. The oil cylinder directly feeds into the system, ensuring smooth and reliable movement. The mast angle can be adjusted within the range of 0 ° to 90 °, with a low center of gravity and good stability, providing operators with a good view and making the working space more spacious and comfortable.
In the production process, we fully consider the efficiency of exploration equipment, adopt world-class components, and modular design, so that the equipment can quickly replace worn parts on site and minimize downtime. The overall design is very beautiful and easy to recognize.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-XZCR-N18A Core Rig | ||
| Displacement | 6.7L, 6-cylinder, National III emissions | ||
| Power | 178kw | ||
| Max Speed | 2200rpm | ||
| Drilling Capacity BQ | 2200m | ||
| Drilling Capacity NQ | 1800m | ||
| Drilling Capacity HQ | 1400m | ||
| Drilling Capacity PQ | 1000m | ||
| RPM | Three-shift/stepless 0-1250rpm | ||
| Max Torque | 6400Nm | ||
| Hole Diameter | 125mm | ||
| Max Lifting Capacity of spindle | 220kN | ||
| Max Feeding Power | 112kN | ||
| Weight | 12T | ||
| Mast Height | 9.5m | ||
| Mast Adjusting Angle | 0-90° | ||
| Drilling Angle | 45°-90° | ||
| Feeding Stroke | 3700mm | ||
| Slippage Stroke | 1120mm |
