Description

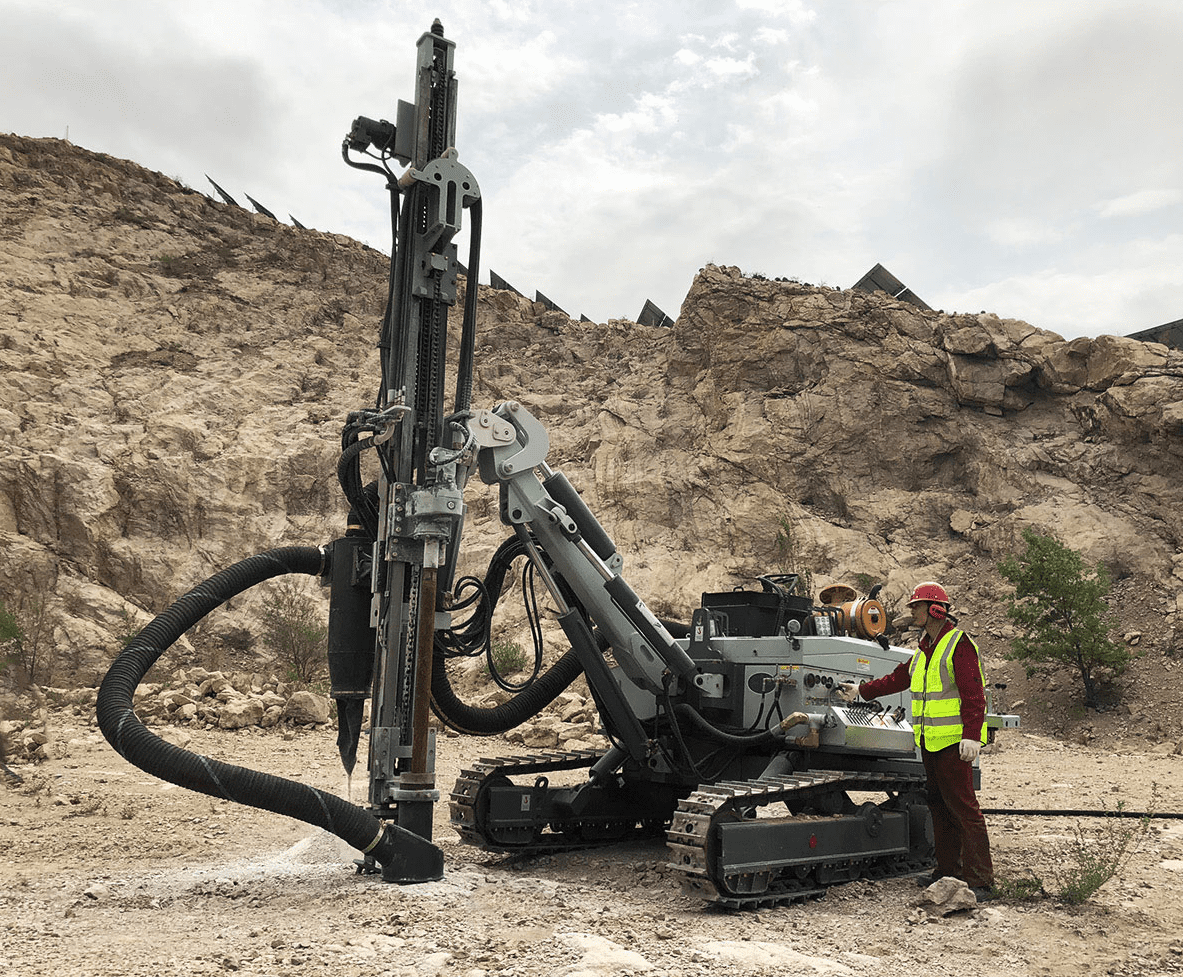

The SMC-DTH-360 Separated Crawler-Mounted Surface Hydraulic Down-the-Hole Drill Rig is an economical and reliable choice for drilling in hydropower, building materials, metallurgy, large-scale earthwork, and open-pit mining projects. Designed for peak efficiency, it delivers optimal torque at 1500 rpm for cost-effective performance. Built with the same robust engineering as the SMC-DTH-370, the SMC-DTH-360 offers durability, power, and a lower investment threshold—making it an ideal solution for steady returns in drilling operations.
Technical Details
| Description | |||
|---|---|---|---|
| Drilling hole diameter | 90-152mm | ||
| Working pressure | 1.38-2.46Mpa | ||
| Turning torque | 1970N.m | ||
| Turning speed | 0-100Rpm | ||
| Lifting force | 20KN | ||
| Sliding frame swing | Left 53°/Right 35° | ||
| Sliding frame pitching | 180° | ||
| Drilling boom swing | Left/Right 45° | ||
| Drilling boom pitching | horizontal 25°/60° | ||
| Grade ability | 35° | ||
| Engine Manufacturer | YUCHAI Diesel etc | ||
| Rated power | 56Kw | ||
| Dimension | 6900*2186*2300mm | ||
| Weight | 6500kg |
