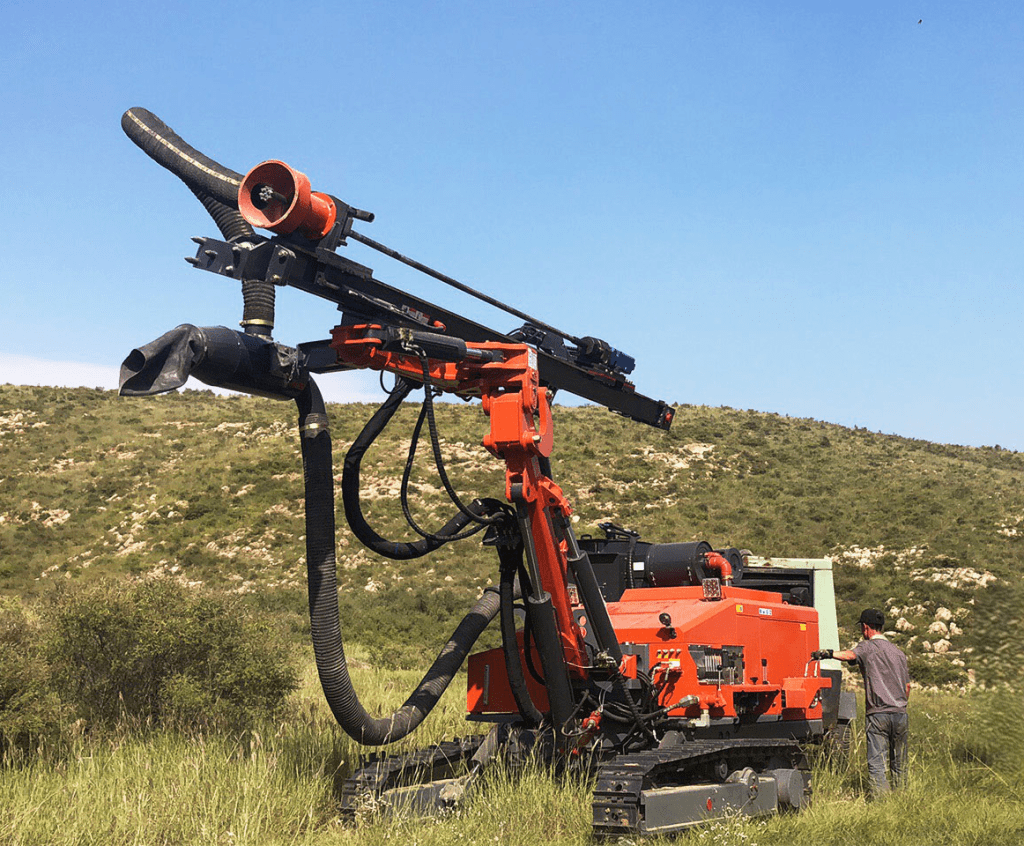

The SMC-DTH-360 Separated Crawler-Mounted Surface Hydraulic Top-Hammer Drill Rig is a high-performance drilling solution designed for engineering construction and mining applications. Equipped with a 73.5 kW Yuchai engine, it delivers optimal fuel efficiency at 1500 rpm, where peak torque ensures powerful and reliable performance. Featuring hydraulic rock drilling technology, this rig is known for its high efficiency, energy savings, environmental compliance, and operational safety. Widely adopted across various sectors, the SMC-DTH-360 offers dependable performance for top-hammer drilling in demanding surface conditions.
Description
Technical Details
| Description | |||
|---|---|---|---|
| Drilling hole diameter | 38-89mm | ||
| Working pressure | 1Mpa | ||
| Turning torque | 300N.m | ||
| Turning speed | 200-400Rpm | ||
| Lifting force | 20KN | ||
| Sliding frame swing | Left 53°/Right 35° | ||
| Sliding frame pitching | 180° | ||
| Drilling boom swing | Left/Right 45° | ||
| Drilling boom pitching | horizontal 25°/60° | ||
| Grade ability | 35° | ||
| Engine Manufacturer | YUCHAI Diesel etc | ||
| Rated power | 73.5Kw | ||
| Dimension | 6900*2186*2300mm | ||
| Weight | 6500kg |
