Description

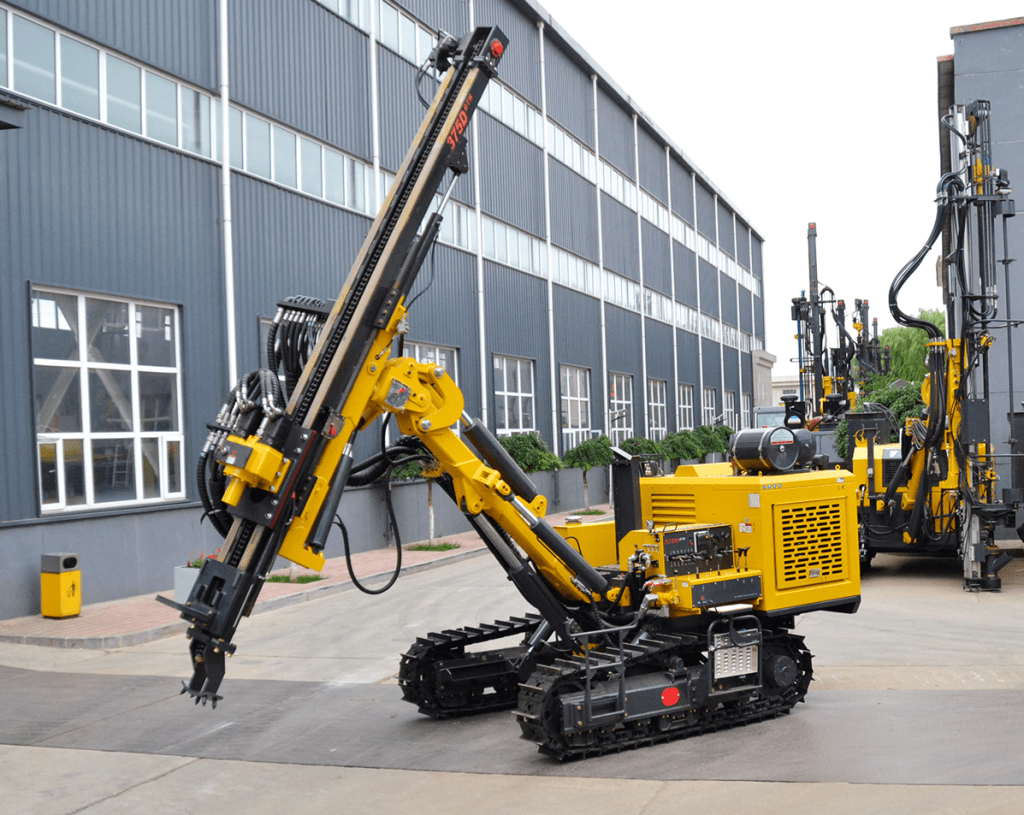

The SMC-DTH-375D Separated Photovoltaic Surface Hydraulic Down-the-Hole Drill Rig is specifically engineered for photovoltaic foundation drilling, delivering strong power and stable performance across challenging terrains. Designed for efficiency in solar project applications, it features a built-in winch that enhances climbing capability, ensuring reliable operation in uneven and sloped environments.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | 195-400mm | ||
| Working pressure | 17-25bar | ||
| Lifting force | 20KN | ||
| Motor parallel torque | 5510 N.m | ||
| Motor parallel rotary speed | 51rpm | ||
| Motor series torque | 2755N.m | ||
| Motor series rotary speed | 101rpm | ||
| Carriage stroke | 3280mm | ||
| Carriage length | 5500mm | ||
| Gradeability | 35° | ||
| Engine Manufacturer | YUCHAI | ||
| Engine Power | 73.5kW | ||
| Dimension | 6550*2170*2300mm | ||
| Weight | 7800kg |
