Description

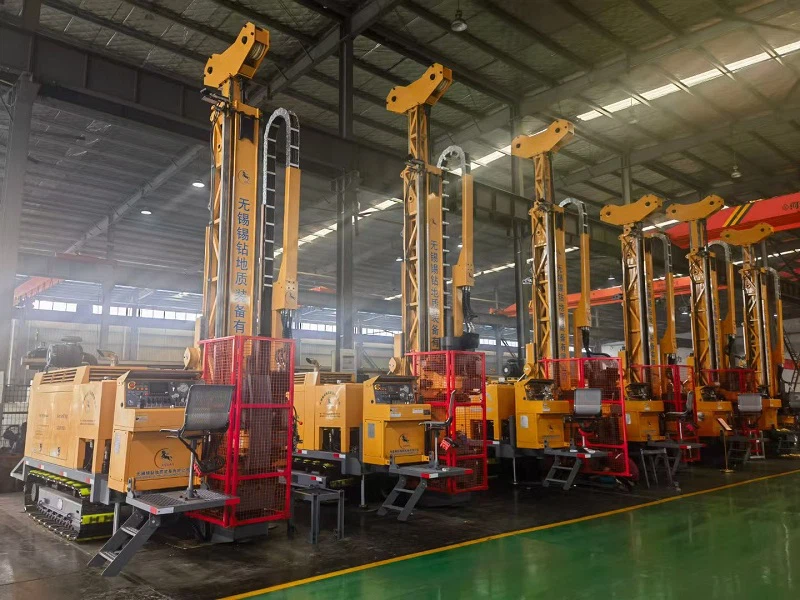

The SMC-DTH-5A is a high-performance crawler-mounted, full hydraulic surface core drill rig designed for deep geological exploration, mineral prospecting, and hydrology projects. Built with international-grade components and featuring a variable speed, high-torque hydraulic power head, the SMC-DTH-5A delivers reliable results in even the most demanding field conditions. Whether you’re drilling vertical or inclined boreholes, HYDX-5A offers maximum efficiency, stability, and operator comfort.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-5A | ||
| Diesel Engine | Model | Cummins 6CTA8.3-C 195 (turbocharged and charge water cooled) | |
| Displacement | 8.3L (2.19 US Gallons) | ||
| Power | 145kW (195HP) | ||
| Rated RPM(Factory setting) | 2200 rpm | ||
| Drilling Capacity Crawler Drilling rig | BQ | 1500 m(4920 Feet) | |
| NQ | 1300 m(4364 Feet) | ||
| HQ | 1000 m(3280 Feet) | ||
| PQ | 680 m(2230 Feet) | ||
| Drill Head | Rotation Motor | Double Hydraulic Motors —variable and Reversible Maker :SAUER-DANFOSS | |
| RPM Hydraulic Crawler Drill Rig | Two Shifts/ Stepless Change 0-1145 RPM | ||
| Ratios | 1st 8776:1 2nd 2716:1 | ||
| Head Opener | sidewise sliding way with hydraulic drive | ||
| Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally Closed Type Axial Holding Capacity of 222 400 N | ||
| Max. Torque Hydraulic Crawler Drill Rig | 4650 N.Mn(3427 lbf-ft) | ||
| Hold Diameter | 121 mm (4.76 inch) | ||
| Max. Liftng capacity of Spindle | 150 kN(33720 lbf-ft) | ||
| Max. Feeding Power | 75 kN(16860 inch) | ||
| Primary Pump package | Axial Piston variable displacement Triplex pump for Driving of Drill Head Rotation, Man Hoist, Mud Pump & Line Winch. | Maker, DANFOSS 1st Pump. at 25MPa 3rd Pump 102 LPM at 25MPa | |
| Hydraulic Tank | Capacity | 420 L (111 US Gallons) | |
| Hoisting Speed (single wire) | 38-70m/min( bare drum) | ||
| Hoisting force (single wire) | 77kN (17310 Ibf) | ||
| Steel Wire Diameter | 50 164m/min( feet) | ||
| Steel Wire Length of Hydraulic Crawler Drill Rig | 164m/min (bare drum) | ||
| Hoisting Speed (single Wire) | 12 kN(2698 Ibf) (bare drum) | ||
| capacity of Wire Line Hoist Mast | Hoisting Force (single Wire) | 6 mm(024 inch) | |
| Steel Wire Diameter | 150) m(4920 feet) | ||
| Steel Wire Length | 11 m(36 feet) | ||
| Mast Adjusting Angle | 0-90 | ||
| Drilling Angles | 45-90 | ||
| Feeding Stroke | 3800 mm (150inch) | ||
| Slippage Stroke | 1500 mm (59inch) | ||
| Feed Pull | 1500kg ( 33075 Ibf) | ||
| Feed Thrust | 7500kg ( 16538 Ibf) | ||
| Rod Pull | 3m or 6m(9.84feet or 19.68feet) | ||
| Mud Pump | Type | Reciprocating Pump Triplex Plunger | |
| Model | BW250 | ||
| Stroke | 100 m ( 3.9 inch) | ||
| Output Volume | 250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min) | ||
| Discharge Pressure | 2.5, 4.5, 6.0, 60 Mpa (363, 653. 870, 870 pso) | ||
| Foot Clam | Clamping Score | 55.5-117.5 mm(2.19-4.63 inch) through hole 154mm(6.06 inch) | |
| Other | Wieght | 1300 kg ( 28665 Ib) | |
| Dimensions (L x W x H ) | 5600x224002650mm (220x88.2x104.3 Inch) | ||
| Transport Way | Steel Crawl |
