Description

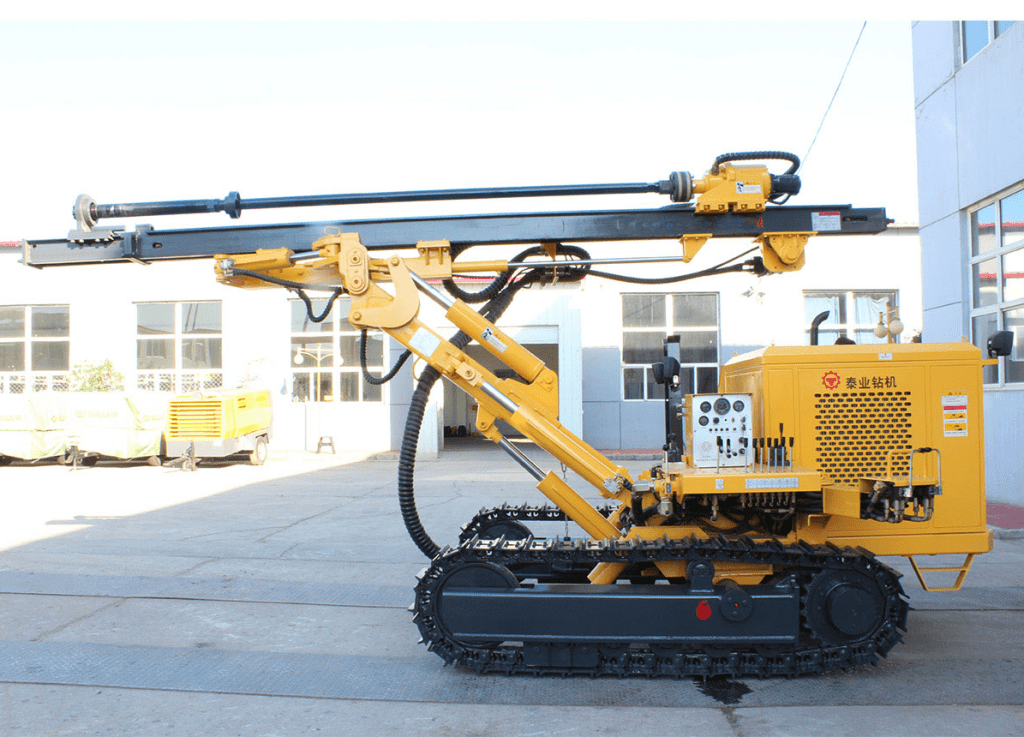

The SMC-DTH-628 Separated Crawler-Mounted Surface Hydraulic Down-the-Hole Drill Rig is a cost-effective, high-performance solution engineered for drilling blast holes in open-pit mining, metallurgy, building materials, railways, hydropower, national defense, and underwater reef blasting projects. Designed for affordability without compromising performance, it features hydraulic-driven crawler movement, rotary drilling, feed, lifting compensation, and leveling functions. Impact drilling and flushing are powered by compressed air, while a wet dust collector and high-pressure air system ensure clean operation. With globally sourced components and power-load adaptation systems, the SMC-DTH-628 delivers optimal efficiency, reduced energy consumption, and reliable performance in demanding environments.
Technical Details
| Description | |||
|---|---|---|---|
| Working pressure | 1.05-2.46 bar | ||
| Hole diameter range | 90-165mm | ||
| Hole depth | 50m | ||
| Gradeability | 30° | ||
| Walking speed （two-speed） | 2 km/h or 3km/h | ||
| Drilling boom swing | left 45°/ right 45° | ||
| Feed compensation | 1200mm | ||
| Rotate speed | 0-80 rpm | ||
| Lifting force | 1500kg | ||
| Single feed length | 3m | ||
| Rock hardness | f=6-20 | ||
| Impactor size | 3" 4" 5" | ||
| Air consumption | 10-25 m³/min | ||
| Engine Power | 70KW | ||
| Engine manufacturer | Yuchai | ||
| Fuel tank volume | 100L | ||
| Weight | 5800kg | ||
| Dimension | 6950*2210*2130mm |
