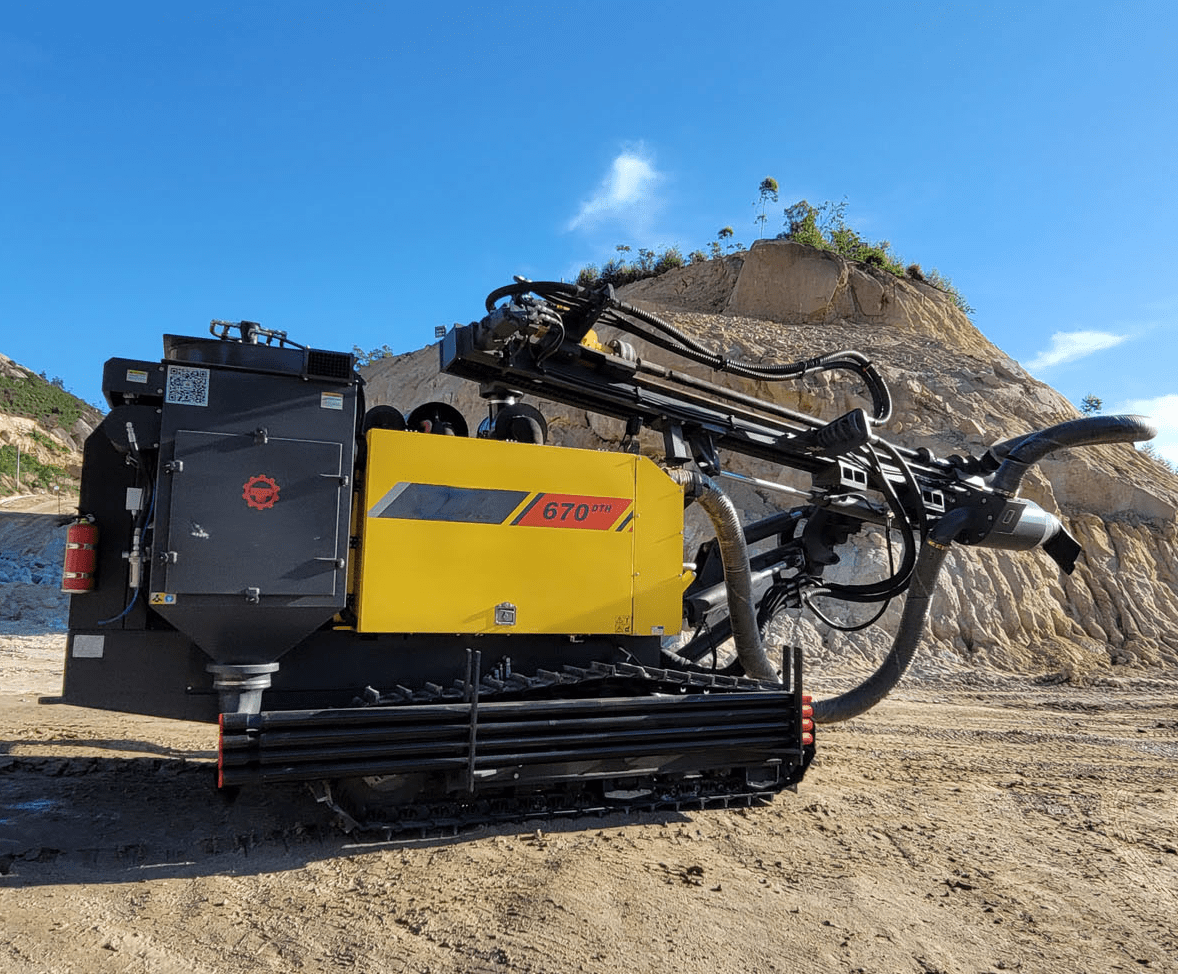

The SMC-DTH-670 Small Integrated Surface Hydraulic Down-the-Hole Drilling Rig is a compact and efficient solution designed for small to medium-sized mines, quarries, and municipal engineering projects. Featuring a two-stage screw air compressor, it supports a drilling hole range of 115–152 mm. Equipped with a hydraulic motor and chain propulsion system, it delivers stable power and reliable performance. Compared to larger DTH rigs, the SMC-DTH-670 offers greater flexibility, easier maintenance, and lower capital investment, making it ideal for operations requiring mobility and cost-efficiency.
Description
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | 90-152mm | ||
| Rod size | 76*4000/89*3000 | ||
| Rotary speed | 0-100rpm | ||
| Rotary torque | 3400N.m | ||
| Lifting force | 20KN | ||
| Air compressor F.A.D | 19.5m³/min | ||
| Air compressor Pressure | 20bar | ||
| Engine Manufacturer | YUCHAI | ||
| Engine Power | 228kW | ||
| Fuel tank | 470L | ||
| Dimension | 9000*2600*3700mm | ||
| Weight | 12000kg |
