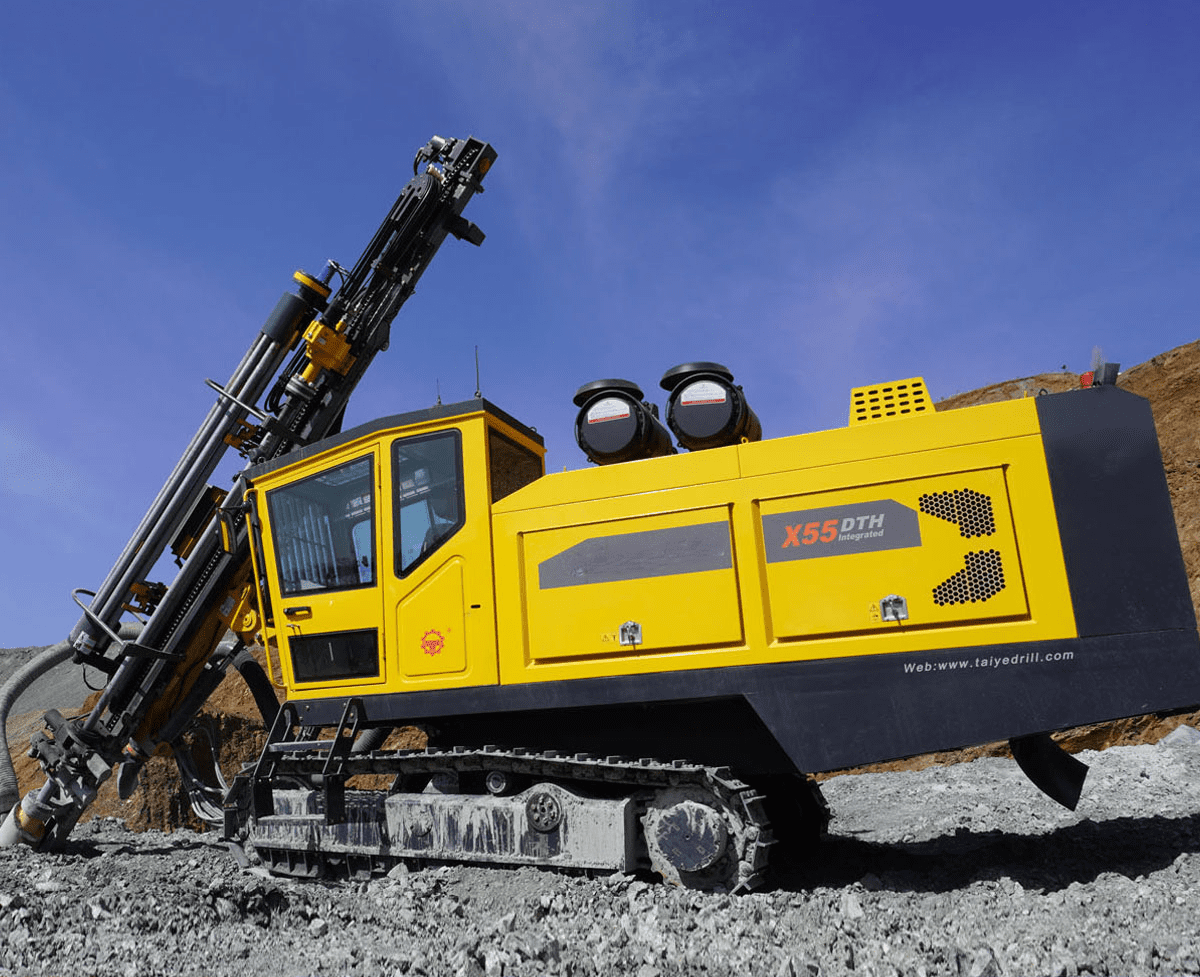

The SMC-DTH-X55 Crawler-Mounted Remote Control Integrated Drilling Rig is a fully integrated surface DTH drilling machine that combines drilling, gas supply, and power systems in a single compact unit. Featuring advanced electro-hydraulic control technology, it ensures optimal power coordination between the power source, pump, load, and air supply. Built with a robust mechanical structure, the X55 delivers superior reliability, flexibility, operator comfort, and safety. Designed for modern surface drilling operations, it offers a seamless integration of operator control, machine performance, and working conditions.
Description
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | 115-152mm | ||
| Rod size | 76*4000/89*3000mm | ||
| Rotary speed | 0-140rpm | ||
| Rotary torque | 3400N.m | ||
| Lifting force | 20KN | ||
| Stroke | 4670mm | ||
| Air compressor F.A.D | 20m³/min | ||
| Air compressor Pressure | 19.2bar | ||
| Engine Manufacturer | YUCHAI | ||
| Engine Power | 228kW | ||
| Dimension | 11000*2800*3400mm | ||
| Weight | 16000kg |
