Description

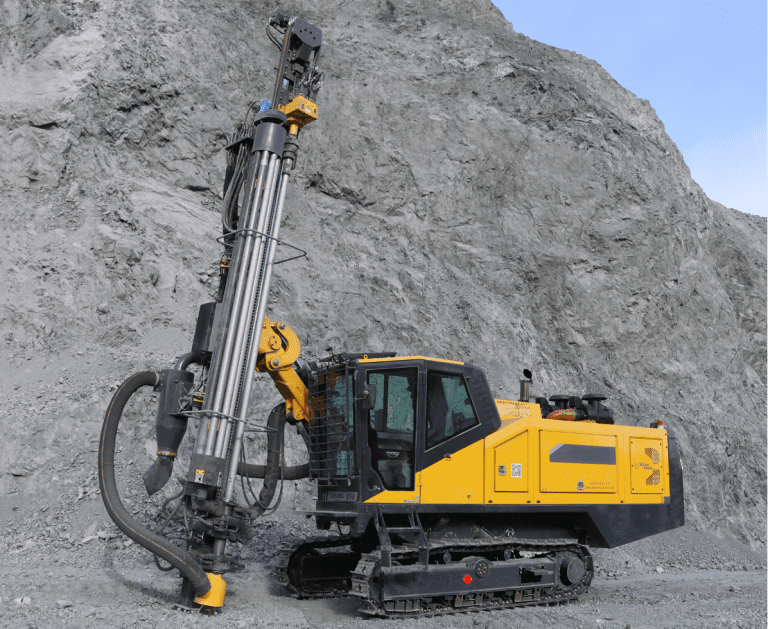

The SMC-DTH-X5S Full Hydraulic Crawler-Mounted Surface Blasting Drilling Rig is a high-performance DTH drilling machine built for open-pit mining applications. Equipped with a comfortable cab, automatic rod changer, and integrated dust removal system, the X5S is designed for operational efficiency and operator safety. This fully hydraulic rig offers high drilling performance, durability, ease of maintenance, and exceptional reliability under demanding surface conditions.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | 115-152mm | ||
| Rod size | 76/89*5000 | ||
| Rotary speed | 0-100rpm | ||
| Rotary torque | 3400/4300N.m | ||
| Lifting force | 20KN | ||
| Stroke | 5860/4860(Optional)mm | ||
| Air compressor F.A.D | 25 m³/min | ||
| Air compressor Pressure | 20-23bar | ||
| Engine Manufacturer | DCEC CUMMINS | ||
| Power | 306 kW | ||
| Dimension | 12000*2700*3100mm | ||
| Weight | 19000kg |
