Description

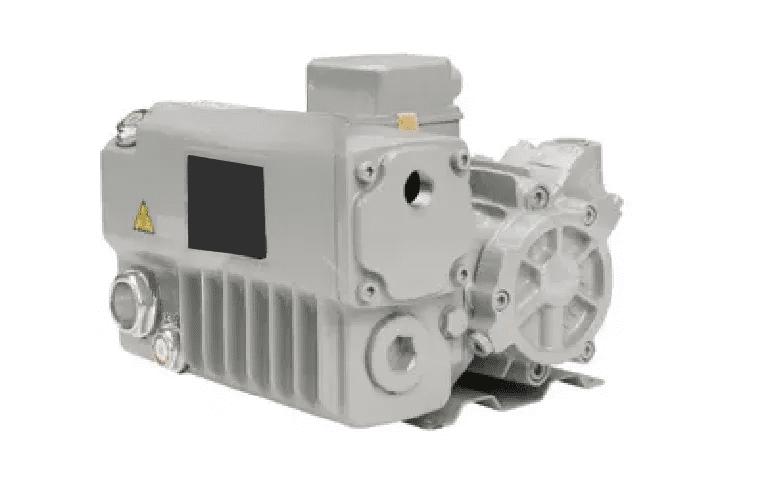

The SMC-HTE-12 and 20 are single-stage rotary vane vacuum pumps with oil recirculation, designed for compact, efficient, and reliable vacuum performance. The rotor is directly keyed to the motor shaft, simplifying the design and ensuring smooth operation.
Each pump includes an oil mist separator for clean exhaust and reduced oil loss. A built-in gas ballast prevents condensation when processing small amounts of steam, making these models ideal for light-duty industrial, laboratory, and analytical applications.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-12 | SMC-HTE-20 | |
| Pumping speed m³/h 50Hz | 12,5 | 18 | |
| Pumping speed m³/h 60Hz | 15 | 21 | |
| Ultimate pressure with gas ballast (abs.) mbar | ≤ 2 (≤ 20 /B) | ≤ 2 (≤ 20 /B) | |
| Motor power kW 50Hz | 0,37 | 0,55 | |
| Motor power kW 60Hz | 0,44 | 0,66 | |
| Motor speed rpm 50Hz | 3000 | 3000 | |
| Motor speed rpm 60Hz | 3600 | 3600 | |
| Water vapour tolerance mbar | 30 | 30 | |
| Water vapour pumping capacity kg/h | 0,2 | 0,45 | |
| Lubricant charge l | 0,3 | 0,5 | |
| Sound pressure level dB(A) 50Hz | 65 | 66 | |
| Sound pressure level dB(A) 60Hz | 66 | 67 | |
| Dimensions L x B x H mm | 280x214x189 | 298x221x189 | |
| Weight kg | 13 | 17 | |
| Connections | |||
| Inlet | 1/2” Gas | 1/2” Gas | |
| Outlet | 1/2” Gas | 1/2” Gas |
