Description

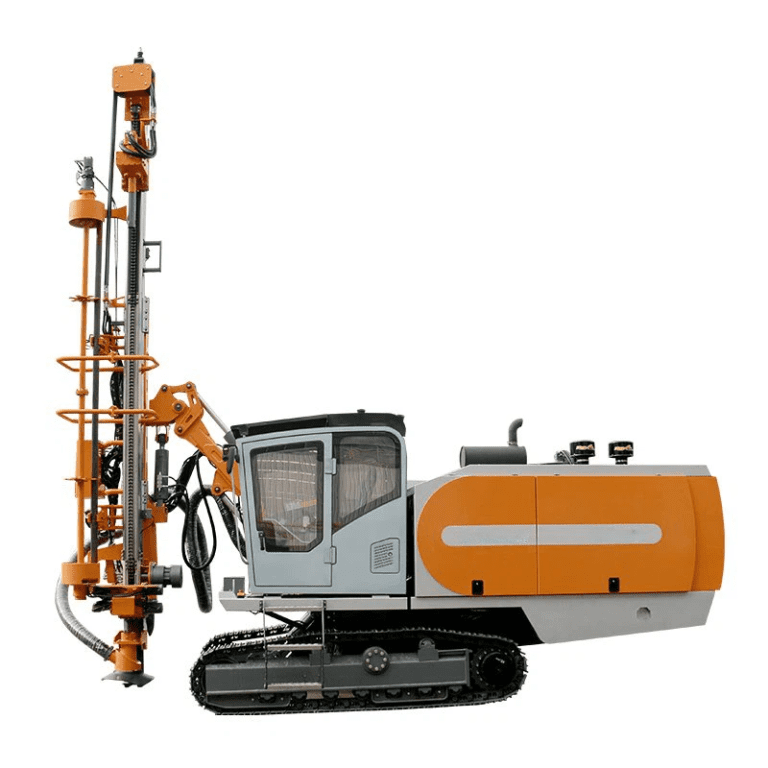

The SMC-TE-D450D is a highly adaptable and efficient surface crawler drill rig built on mature, field-proven technology. Continuously refined for greater productivity and operational versatility, this model is ideal for a wide range of surface drilling applications in mining, quarrying, and construction.
Designed for precision and performance, the SMC-TE-D450D supports both production drilling and pre-splitting operations—helping accelerate stripping processes and maintain tight control over dilution rates. Its lightweight build and compact dimensions allow for quick relocation between benches and work areas, enhancing operational efficiency.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | Φ115 ‒ 152 mm | ||
| Recommended DTH hammer size | 4” / 5” | ||
| Drill pipe handling capacity | 4+1 | ||
| Drill pipe OD | 89 mm | ||
| Drill pipe length | 5 m | ||
| Maximum hole depth with Auto handling | 25 m | ||
| Rotation speed | 0 - 105 rpm | ||
| Maximum torque | 2,800 N.m | ||
| Diesel engine | Cummins L9CS4 360C | ||
| Rated power | 264 kW ( 355 hp ) | ||
| Emission standard | Tier 4 | ||
| Fuel tank Capacity | 480 L | ||
| Maximum working pressure | 21 bar | ||
| Capacity FAD | 19 m 3 / min | ||
| Boom type | Heavy duty straight boom | ||
| Feed beam | Hydraulic motor - chain feeding system | ||
| Total length | 8,570 mm | ||
| Travel length | 5,300 mm | ||
| Feed extension | 1,200 mm | ||
| Feeding rate | 0.85 m / s | ||
| Maximum feeding force | 15kN | ||
| Maximum pull up force | 31kN | ||
| Track frame | with oscillation cylinders | ||
| Maximum Tramming speed | 3 km / h | ||
| Maximum Traction force | 115.4kN | ||
| Slope climbing ability | 25° | ||
| Track frame oscillation angle | ±10° | ||
| Ground clearance | 450 mm | ||
| Weight | 15,000 kg | ||
| Length | 11,200 mm | ||
| Width | 2,360 mm | ||
| Height | 3,100 mm |
