Description

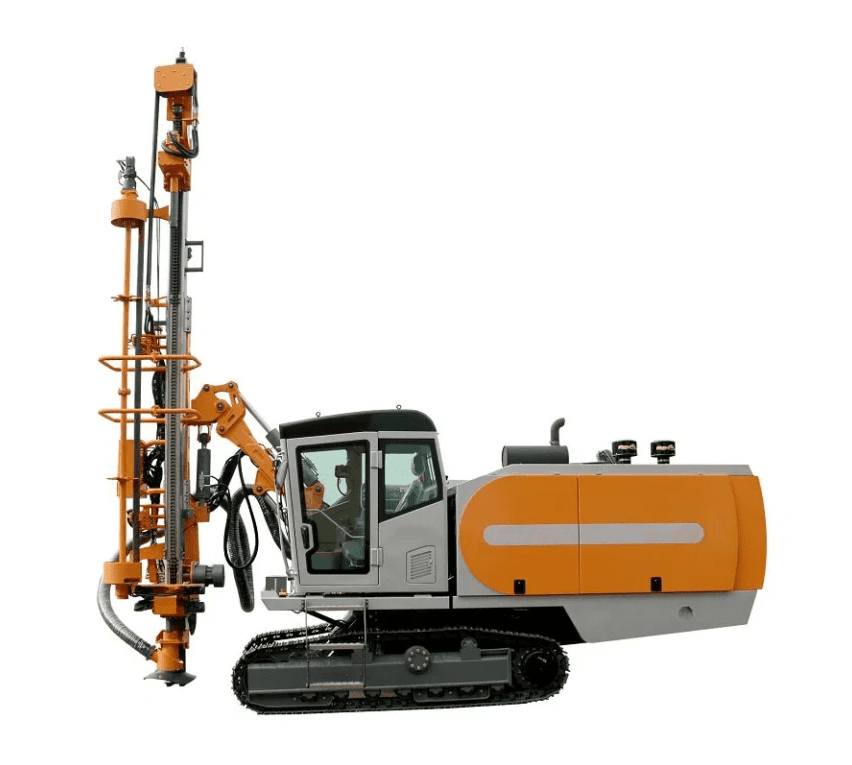

SMC Surface Drill Rigs Series
The SMC range of Surface Drill Rigs, including the SMC-TE–D480A and SMC-TE–D440A models, are engineered to deliver high performance across diverse geological conditions. The SMC-TE–D480A has been proven effective in soft, medium, and hard rock formations, delivering deep holes ranging from 5″ to 8″ with fast drilling rates and minimal maintenance requirements. Meanwhile, the SMC-TE–D440A, available in both standard and Autochange Rod variants, offers a compact yet powerful drilling solution ideal for surface quarry mining and a wide variety of applications. With excellent price-to-quality balance, the D440A models are suitable for bench blast hole drilling in mid-soft to mid-hard rock, meeting the needs of modern mining operations with efficiency and reliability.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-TE-D480A | SMC-TE-D440A | SMC-TE-D460A |
| Hole range | Φ178 ‒ 230 mm | φ 90 ‒ 127 mm | Φ115 ‒ 152 mm |
| Recommended DTH hammer size | 5”/ 6”/ 8” | 3.5” / 4” | 4" / 5" ( |
| Drill pipe handling capacity | 4+1 | 6+1 | 6+1 |
| Drill pipe outer diameter | Φ114 mm | 68/76 mm | Φ102 mm |
| Drill pipe length | 7 m | 4 m | 5 m (optional 6 m or 7 m） |
| Maximum hole depth with Auto handling | 35 m | 28 m | 35 m |
| Rotation speed | 0 - 80 rpm | 0 - 110 rpm | 0 - 105 rpm |
| Maximum torque | 5,600 N.m | 2,800 N.m | 4,435 N.m |
| Diesel engine | Cummins M14CS4-560C | Cummins 6CTAC8.3-C360 | Cummins L9CS4 400C |
| Rated power | 410 kW ( 550 hp ) | 194 kW ( 260 hp ) | 294 kW ( 395 hp ) |
| Emission standard | Tier 4 / Euro stage 4 compliance | Tier II | Tier Ⅳ / Euro stage ⅣA compliance |
| Fuel tank Capacity | 750 L | 480 L | 750 L |
| Air compressor | ACI DG2000 | NIL | SMC DTH 138 III O-H |
| Maximum working pressure | 25 bar (362.5psi) | 20 bar | 21 bar (305psi) |
| Capacity FAD | 33m3/min(1,100cfm) | 16 m 3 / min | 19 m 3 / min |
| Boom type | Heavy duty single straight boom | Heavy duty straight boom | Heavy duty single boom |
| Feed beam | Heavy duty aluminum alloy Hydraulic cylinder +Steel rope feeding system | Hydraulic motor - chain feeding system | High strength aluminum alloy Hydraulic cylinder+ Steel rope feeding system |
| Total length | 11,000 mm | 9,000 mm | |
| Travel length | 7,600 mm | 5,600 mm | |
| Feed extension | 1,300 mm | NIL | 1,300 mm |
| Maximum Feeding rate | 0.88 m / s | 0.85 m / s | 0.88 m / s |
| Maximum feeding force | 34.5kN | 18kN | 34.5kN |
| Maximum pull up force: | 67.6kN | 24.8kN | 67.6kN |
| Track frame | with oscillation | with oscillation cylinders | with oscillation |
| Maximum Tramming speed | 3 km / h | 3.1 km / h | 3 km / h |
| Maximum Traction force | 156.2kN | NIL | 156.2kN |
| Slope climbing ability | 25° | 25° | 25° |
| Track frame oscillation angle | ±10° | ±10° | ±10° |
| Ground clearance | 420 mm | 450 mm | 420 mm |
| Weight | 24,500 kg | 4,800 kg | 22,000 kg |
| Length | 12,560 mm | 9,980 mm | 1,550 mm |
| Width | 2,700 mm | 2,360 mm | 2,700 mm |
| Height: | 3,560 mm | 3,200 mm | 3,560 mm |
| Feed Boom Total length | NIL | 7,475 mm | NIL |
| Feed Boom Travel length: | NIL | 4,585 mm | NIL |
| Feed Boom extension: | NIL | 1,200 mm | NIL |
