Description

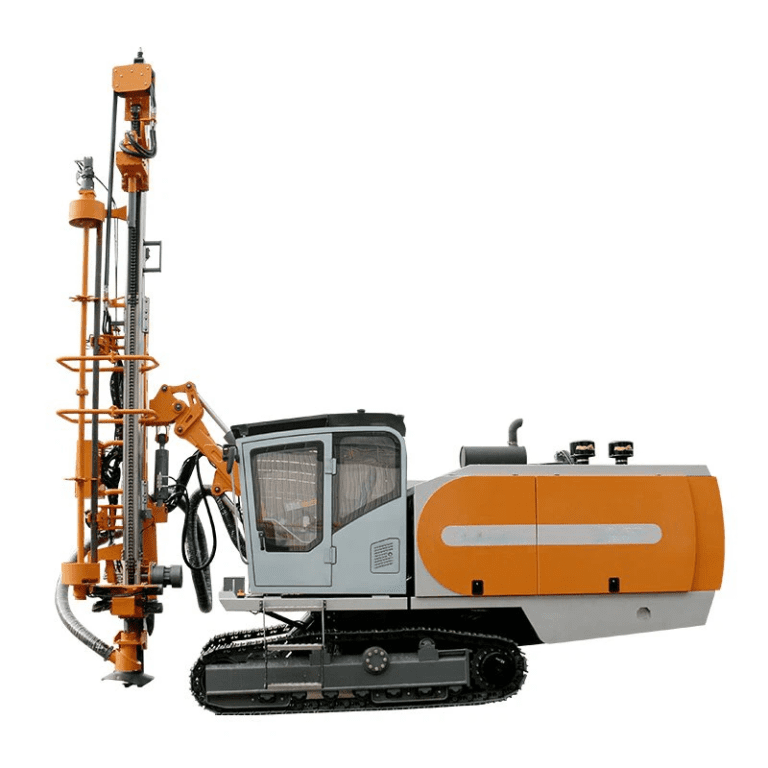

he SMC-TE-D460A is a compact and highly mobile surface drill rig, designed for maximum performance in tight bench spaces and rugged terrain. Its refined design offers enhanced maneuverability, a comfortable operator cabin, and simplified controls—making demanding drilling tasks easier, safer, and more efficient.
The spacious, climate-controlled cabin provides an ergonomic workspace with improved visibility and reduced operator fatigue, enabling productivity in extended operations. Maintenance has also been optimized with accessible components and a user-friendly layout to minimize downtime.
SMC is committed to delivering quality-built equipment that meets global standards of durability, safety, and efficiency. Each drill rig is designed and manufactured under strict quality assurance policies, ensuring that customers receive reliable performance and long-term value from every machine.
With the SMC-TE-D460A, contractors and mining operators gain a dependable, operator-focused drill rig that excels in production drilling and auxiliary applications in surface mining environments.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | Φ115 ‒ 152 mm | ||
| Recommended DTH hammer size | 4” / 5” | ||
| Drill pipe handling capacity | 6+1 | ||
| Drill pipe outer diameter | Φ102 mm | ||
| Drill pipe length | 5 m (optional 6 m or 7 m) | ||
| Maximum hole depth with Auto handling | 35 m | ||
| Rotation speed | 0 - 105 rpm | ||
| Maximum torque | 4,435 N.m | ||
| Diesel engine | Cummins L9CS4 400C | ||
| Rated power | 294 kW ( 395 hp ) | ||
| Emission standard | Tier Ⅳ / Euro stage ⅣA compliance | ||
| Fuel tank Capacity | 750 L | ||
| Maximum working pressure | 21 bar (305psi) | ||
| Capacity FAD | 19 m 3 / min | ||
| Boom type | Heavy duty single boom | ||
| Feed beam | High strength aluminum alloy | ||
| Total length | 9,000 mm | ||
| Travel length | 5,600 mm | ||
| Feed extension | 1,300 mm | ||
| Maximum Feeding rate | 0.88 m / s | ||
| Maximum feeding force | 34.5kN | ||
| Maximum pull up force | 67.6kN | ||
| Track frame | with oscillation | ||
| Maximum Tramming speed | 3 km / h | ||
| Maximum Traction force | 156.2kN | ||
| Slope climbing ability | 25° | ||
| Track frame oscillation angle | ±10° | ||
| Ground clearance | 420 mm | ||
| Weight | 22,000 kg | ||
| Length | 11,550 mm | ||
| Width | 2,700 mm | ||
| Height | 3,560 mm |
