Description

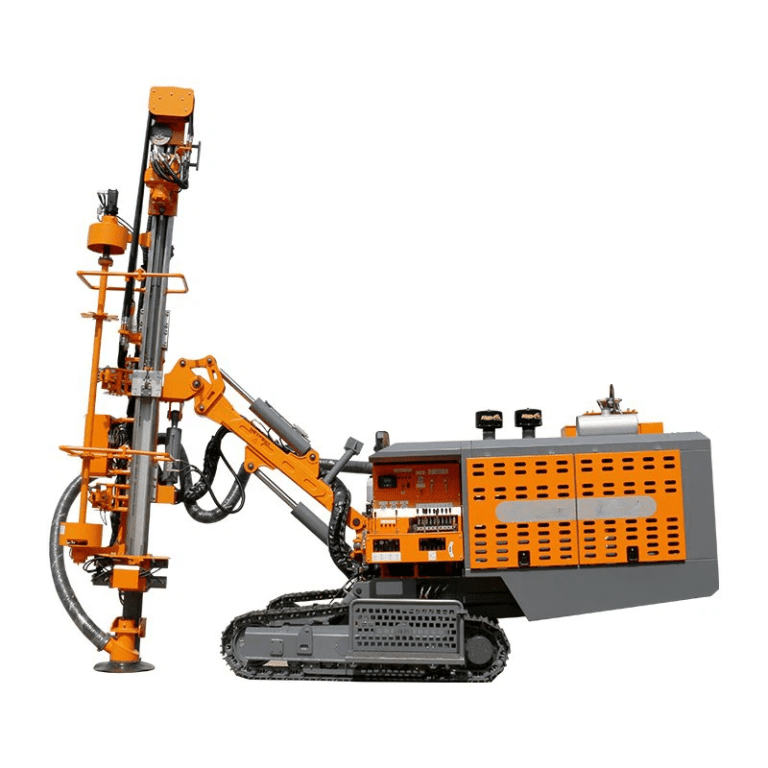

The SMC-TE-452H is a high-efficiency, all-in-one surface drilling rig engineered for quarry operations requiring reliable performance, high output, and compact design. Its integrated structure includes a built-in air compressor, reducing the need for auxiliary equipment and optimizing workspace utilization—ideal for quarries with limited operational space.
Capable of producing up to 30 meters of borehole per hour, the SMC-TE-452H meets the demands of high-volume drilling operations. Whether for aggregate production or dimensional stone extraction, this rig ensures efficient, consistent drilling results.
Constructed with heavy-duty materials and components, the SMC-TE-452H is built to endure the tough conditions of continuous quarry work. Safety is built into every aspect of the design, including emergency stop features, operator safety bars, and reinforced structural components for secure and stable operation.
Technical Details
| Description | |||
|---|---|---|---|
| Engine | YCAO7260-T301 191 kW | ||
| Hole Depth | 24m | ||
| Drill Pipe Sizes | φ76× 3,000 mm/φ68× 3,000 mm (Optional) | ||
| Hole Diameter | φ90 - 130 mm | ||
| DTH Hammer | 4＂/3.5＂(optional) | ||
| Rotation Torque(Max.) | 1,900N.m/1,540 N.m (optional) | ||
| Rotation Speed | 0-92rpm/0-115 rpm (optional) | ||
| Working Pressure | 18 bar | ||
| F.A.D | 15 m3/min | ||
| Tramming Speed | High Speed:3.3 km/h Low Speed:1.5 km/h | ||
| Gradeability | 25° | ||
| Track Frame Oscilation | 士10° | ||
| Total Weight | 10,000 kg | ||
| Transportation Dimensions(L×W×H) | 9,000×2,360×3,000 mm | ||
| Dry Dust Collector | Standard | ||
| Dual Speed Walking Motor | Standard | ||
| Auto Pipe Handling System | Standard |
