Description

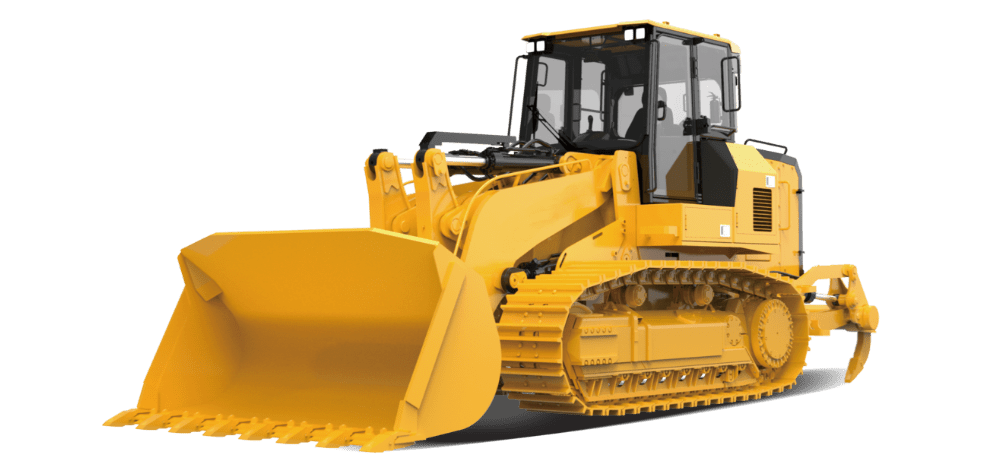

The SMC-CE-DL300M is a high-capacity crawler track loader engineered for large-scale earthmoving, bulk material handling, and multifunctional terrain operations. Built with a reinforced undercarriage and advanced hydraulic systems, this machine is purpose-designed to operate in demanding construction, mining, and industrial environments where stability, power, and control are critical.
Powered by a fuel-efficient, Tier 4 Final-compliant engine delivering 231 kW at 2100 rpm, the SMC-CE-DL300M provides strong, consistent output while maintaining low emissions and optimal fuel economy. With an operating weight of 29,700 kg, the machine ensures enhanced traction and ground engagement, ideal for high-resistance tasks such as dozing, loading, and excavation.
Equipped with a 3.2 m³ capacity bucket, this model features an advanced chassis system utilizing a durable four-wheel, single-track layout for balanced load distribution and long service life. Track shoes are available in 660 mm and 830 mm widths, allowing operators to adapt to soft soils, gravel, or uneven terrain with minimal ground pressure.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-DL300M | SMC-CE-DL300C3 | |
| Engine power/speed(kW/rpm) | 231/2100 | 228/1900 | |
| Operating mass(kg) | 29700 | 29700 | |
| Bucket capacity(m³) | 3.2 | 3.2 | |
| Machine external dimensions(mm) | 7345x2980x3510 | 7345x2980x3510 | |
| Engine | Cummins QSL9 | WEICHAI WP12 | |
| Track center distance(mm) | 2160 | 2160 | |
| Track shoe width(mm) | 660/830 | 660/830 | |
| Ground contact length(mm) | 2945 | 2945 | |
| Ripper type | Three-tooth | Three-tooth | |
| Ripper penetration depth(mm) | 397 | 397 | |
| Emissions | T4F | EU stageⅢA |
