Description

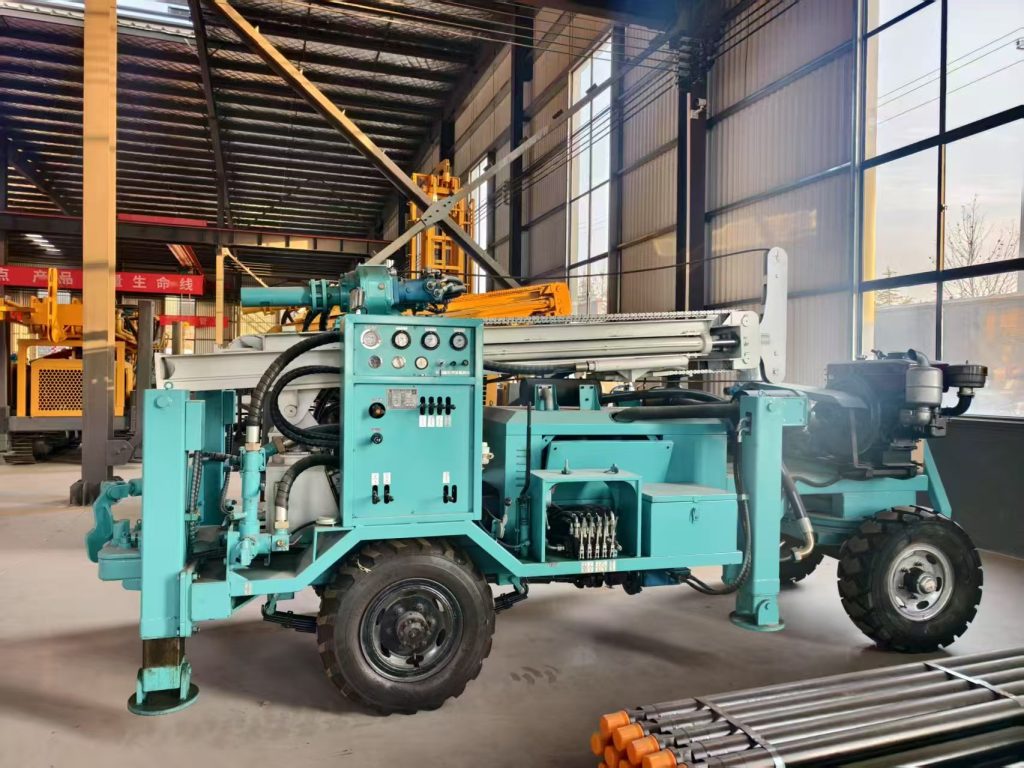

Explore our trailer-type water well drilling rig, engineered for drilling to depths of up to 260 meters. This mobile and robust drilling solution is ideal for accessing deeper groundwater resources, offering versatility and power for your water well projects.
Technical Details
| Description | |||
|---|---|---|---|
| Model | |||
| Machine weight | 5.7 (T) | ||
| The hole diameter | 140-305 (mm) | ||
| Drilling depth | 260 (m) | ||
| One-time advance length | 3.3 (m) | ||
| Walking speed | 2.5 (km/h) | ||
| Climbing ability / angles | 30 (Max.) | ||
| Main engine power | (kw) | ||
| Equipped capacitor | 76 | ||
| Working air pressure | 1.7-2.5 (MPA) | ||
| Air consumption | 17-31 (m³/min) | ||
| Swing speed | 45-70 (rpm) | ||
| Drilling efficiency / penetration | 10-35 (m/h) | ||
| Drill pipe diameter | Φ76 Φ89 (mm) | ||
| Drill pipe length | 1.5m 2.0m 3.0m (m) | ||
| Rig / Lifting force | 15 (m/min) | ||
| Rapid rise speed | 24 (m/min) | ||
| Fast feeding speed | 40 (m/min) | ||
| Fast feeding speed | 40 | ||
| Width of loading / Width of winch | 2.73 (m) | ||
| Hoisting force of winch | 15 (T) | ||
| Swing torque | 4000-5300 (N.m) | ||
| Dimension | 3900×1750×2250 (mm) | ||
| Equipped with hammer | Medium and high wind pressure series | ||
| High leg stroke | 1.4 (m) | ||
| The engine brand | Cummins |
