Description

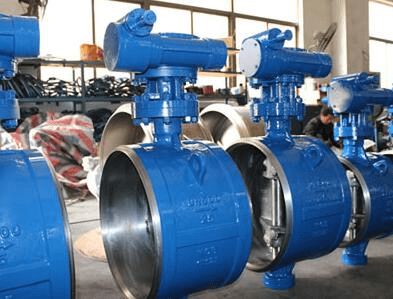

SMC triple offset metal seated butterfly valves are engineered for high-performance applications requiring zero leakage, durability, and reliable operation under extreme conditions. The triple offset design minimizes friction between the disc and seat during operation, ensuring a tight metal-to-metal seal and extended service life. These valves are ideal for high-pressure, high-temperature, and corrosive media in industries such as oil and gas, power generation, petrochemical, and marine. SMC triple offset butterfly valves offer precise flow control, resistance to wear and deformation, and excellent shutoff capabilities even in severe service environments.
Technical Details
| Description | |||
|---|---|---|---|
| Size Range | 3＂~128＂ (80mm~3200mm) | ||
| Pressure Class | 150lb~1500lb(PN25~PN260) | ||
| Temperature Range | -196℃~+650℃（-321℉~+1202℉） | ||
| Connection Type | wafer, lug, double flange, butt -welded | ||
| Drive Type | Worm gear, Pneumatic, Electric, Hydraulic |
