Description

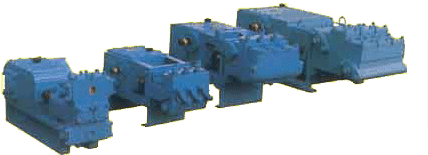

TRIPLEX pumps models. T100 – T202 – T300 – T400 and the DUPLEX pump model OR80, are plunger type pumps with stuffing box and pistons continuous washing; they are therefore valid for pumping liquids of various density and nature; simplicity, robustness and quality also guarantee maximum reliability.
Other important characteristics are: gears and steel shafts (without welding) with high resistance treatment – steel pistons with thick chrome plating – special cast iron pump body – plate or spherical type valves – special gaskets for piston/stuffing box system.
Technical Details
| Description | |||
|---|---|---|---|
| Models | duplex OR80 | triplex T100 | triplex T202 |
| Max. flow-rate – lt./min. | 80 | 100 | 200 |
| Max. pressure – bar | 40 | 50 | 55 |
| Installed power- kW | 7,5 | 9 | 18,5 |
| Dimensions (length x width x height) – mm | 960 x 430 x 470 | 750 x 440 x 400 | 1010 x 460 x 470 |
| Weight – kg | 150 | 170 | 360 |
