Description

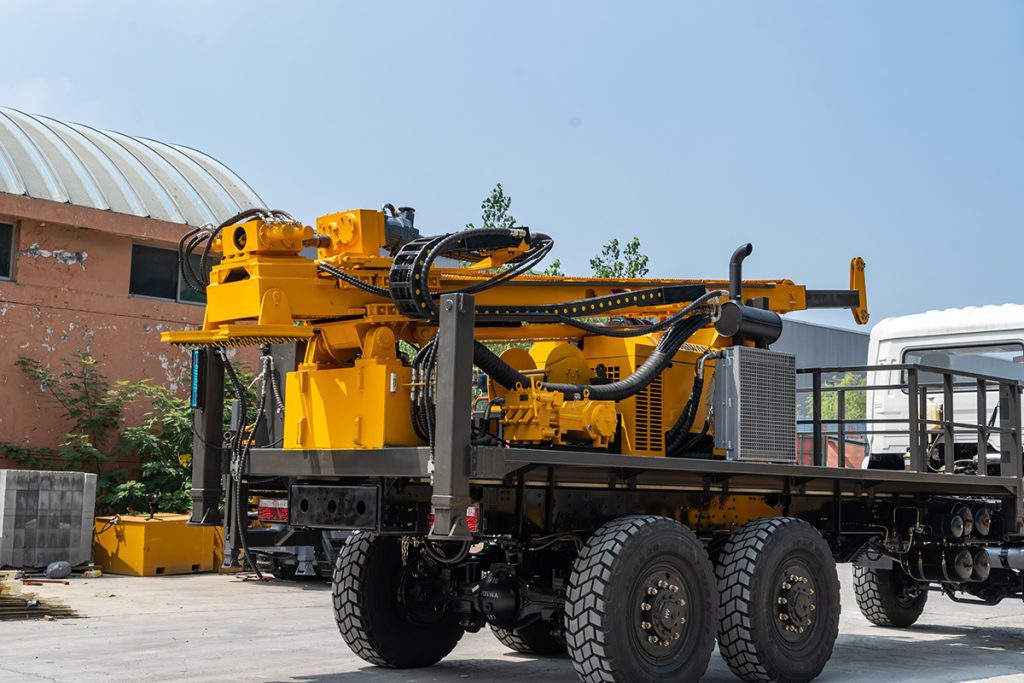

Discover our efficient and precise truck-mounted diamond mining drill, expertly engineered for hard rock and mineral resource exploration. This powerful drilling equipment utilizes advanced diamond drill bit technology to ensure high-quality core sampling. Ideal for a wide range of applications including mine exploration, comprehensive geological surveys, and deep hole drilling operations.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-YX10 | ||
| Drilling capacity | |||
| BTW (m) | 1400 | ||
| NTW (m) | 1200 | ||
| HTW (m) | 1000 | ||
| PQ (m) | 600 | ||
| Hydraulic system | 32+20+20+20 MPa | ||
| Cooling method | Secondary air cooling + primary water cooling | ||
| Engine parameters | Weichai 129Kw six-cylinder | ||
| Rated power Kw | 129 | ||
| Rated speed rpm | 2400 | ||
| Power head parameters | 2600 n.m | ||
| Maximum speed rpm | 1400 | ||
| Feed stroke m | 2000/3500 (optional) | ||
| Through hole diameter mm | 95 | ||
| Lifting force kN | 360 | ||
| Thrust force kN | 180 | ||
| Rope core winch parameters | 1200 m | ||
| Lifting Lift kN | 24 | ||
| Lifting speed m/min | 110 | ||
| Wire rope diameter mm | 6 | ||
| Mast parameters | 8.5 height/m | ||
| Drilling angle ° | 0-90 | ||
| Sliding stroke mm | 1200 | ||
| Gripper parameters | Through hole 130mm | ||
| Track parameters | 30 angle ° | ||
| Maximum driving speed km/h | 2 | ||
| Transportation dimensions / Length * width * height mm | 5600*2200*3000 | ||
| Total machine weight | 7.3 (t) |
