Description

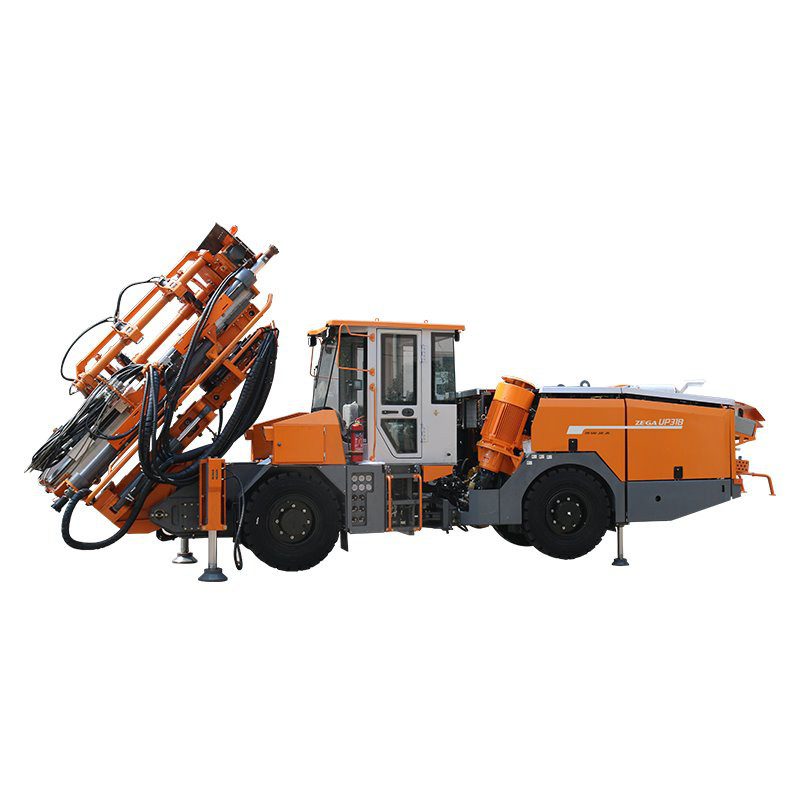

The Tunnel Multi-Boom Rock Rig SMC-TE-UP31B features a robust four-wheel drive and articulated chassis, making it ideal for navigating a variety of small to medium-sized tunnels. Powered by a diesel-driven tramming system, this rig allows for fast and efficient transfer between different mining areas, significantly improving operational flexibility.
Equipped with a self-developed high-frequency hydraulic rock drill, the SMC-TE-UP31B delivers exceptional performance characterized by rapid drilling speeds, excellent hole straightness, and low operating costs. This makes it the preferred choice for many mining operations seeking both efficiency and reliability.
The rig utilizes the advanced ZY104MZ drifter, featuring a double shock damper system that effectively absorbs bounce energy. This design ensures continuous, effective contact between the drill bit and the rock at the hole bottom, resulting in improved penetration rates and overall drilling productivity.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-TE-UP31B | ||
| Hole range | 64-102mm | ||
| Hole depth | 5,000mm | ||
| Optimum hole depth | 3,000mm | ||
| Drill Rod Size | T45 *1525 | ||
| Face Drilling Work Size (W x H) | 8,500×5,150mm | ||
| Turning Radius ( inner / outer ) | R2,650mm/R5,000mm | ||
| Drilling/Anchor Coverage Area | Face drilling 96m2/Anchor 116m2 | ||
| Dimension (L*W*H-roof up/down) | 9,200×1,850×3,300mm | ||
| Weight | ≤16,000Kg | ||
| Drifter Model | ZY104MZ | ||
| Impact Power | 20 kW | ||
| Impact Frequency | 60Hz | ||
| Rotation Speed | 0-140rpm | ||
| Max. Torque | 860N.m | ||
| Weight | 184Kg | ||
| Working Pressure | 7bar | ||
| Rated Capacity FAD | 1m3/min | ||
| Diesel Engine Model | Cummins B3.9CS4-C110 | ||
| Rated Power | 75 kW (102 HP) | ||
| Rotation Speed | 2200rpm/min | ||
| Electric Motor Rated Power | 55kW | ||
| Voltage | 380V | ||
| Reel Cable Length | 80m | ||
| Feed Total Length | 3,600mm | ||
| Feeding Length | 1,980mm | ||
| Extension Length | 1,200mm | ||
| Tramming Speed | 12/4.5km/h | ||
| Gradeability | 15° | ||
| Articulated Steering Angle | ±41° | ||
| Hydraulic Jacks | 4pcs | ||
| Fuel tank volume | 63L | ||
| Ground clearance | 300mm | ||
| Parallel holding | Parallel movement | ||
| Boom extension | 460mm | ||
| Boom swing angle L/R | ±45° | ||
| Feed tilt angle | +45°/-60° | ||
| Feed roll-over | 360°(auger-type) | ||
| Water System Flow Rate | 100L/min | ||
| Working pressure | 14bar | ||
| Min. water inlet pressure | 2bar |
